RT1P44BM Overview

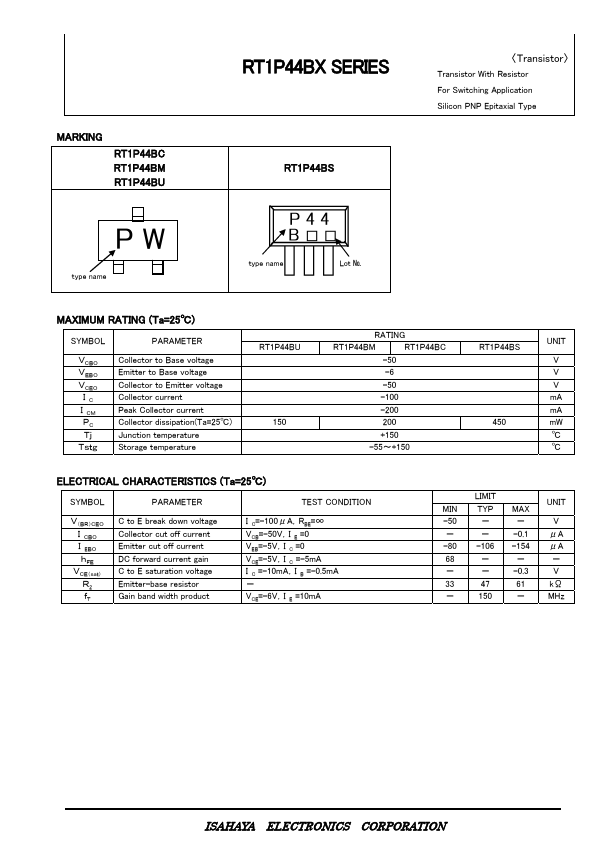

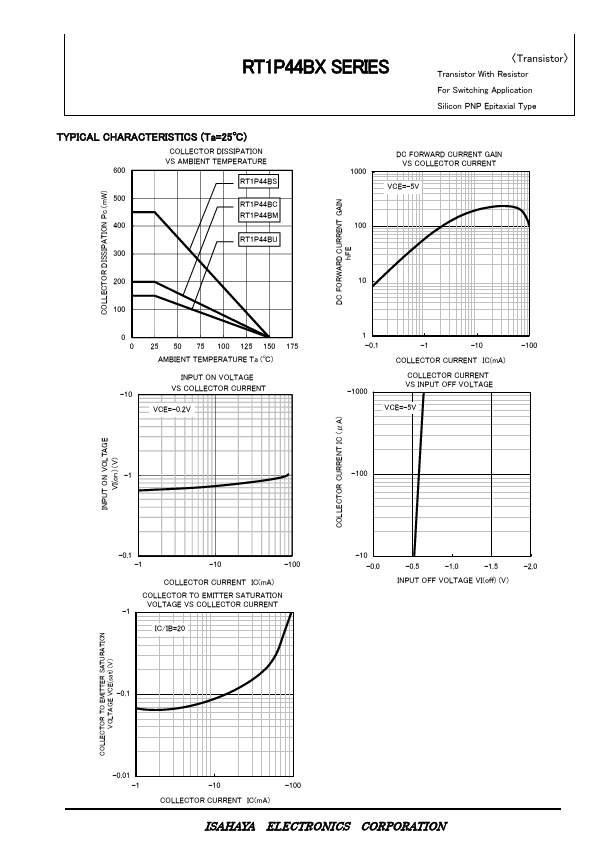

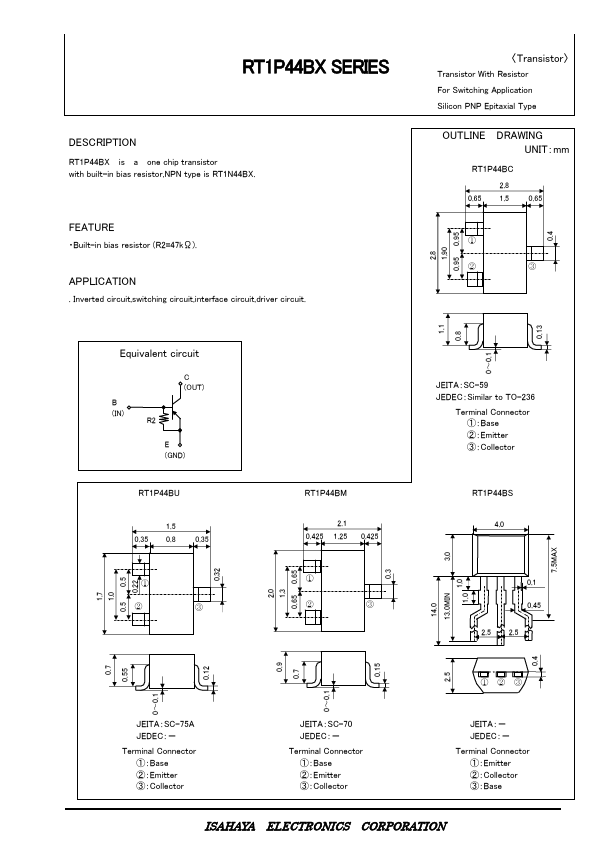

RT1P44BX is a one chip transistor with built-in bias resistor,NPN type is RT1N44BX.
RT1P44BM Details
| Part number | RT1P44BM |
|---|---|
| Datasheet | RT1P44BM RT1P44BC Datasheet (PDF) |
| File Size | 483.59 KB |
| Manufacturer | Isahaya Electronics Corporation |
| Description | Silicon PNP Epitaxial Type Transistor |
|
|
