Datasheet Details
| Part number | RT1P441U |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 271.91 KB |
| Description | Silicon PNP Epitaxial Type Transistor |
| Datasheet |
 RT1P441U Datasheet
|
|
|
| Part number | RT1P441U |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 271.91 KB |
| Description | Silicon PNP Epitaxial Type Transistor |
| Datasheet |
RT1P441U Datasheet
|
|
|
|

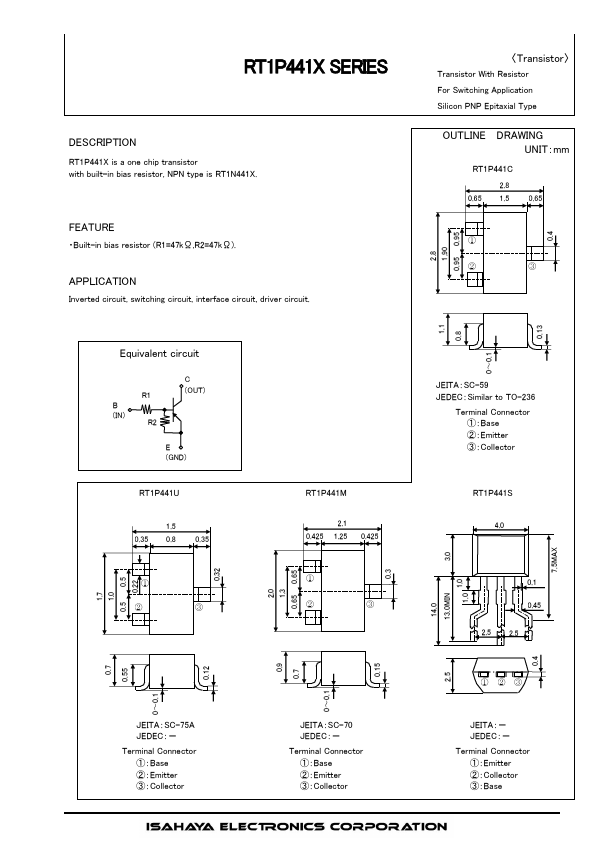

RT1P441X is a one chip transistor with built-in bias resistor, NPN type is RT1N441X.

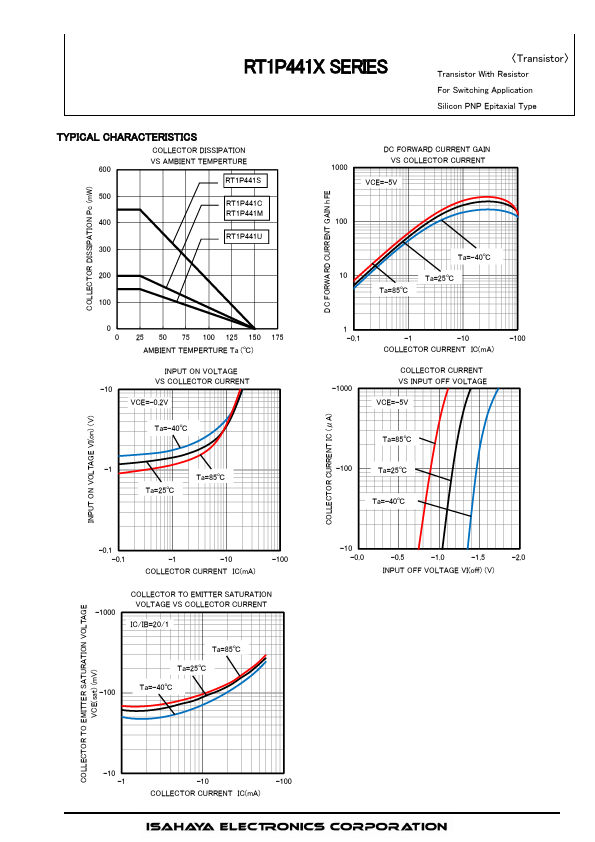

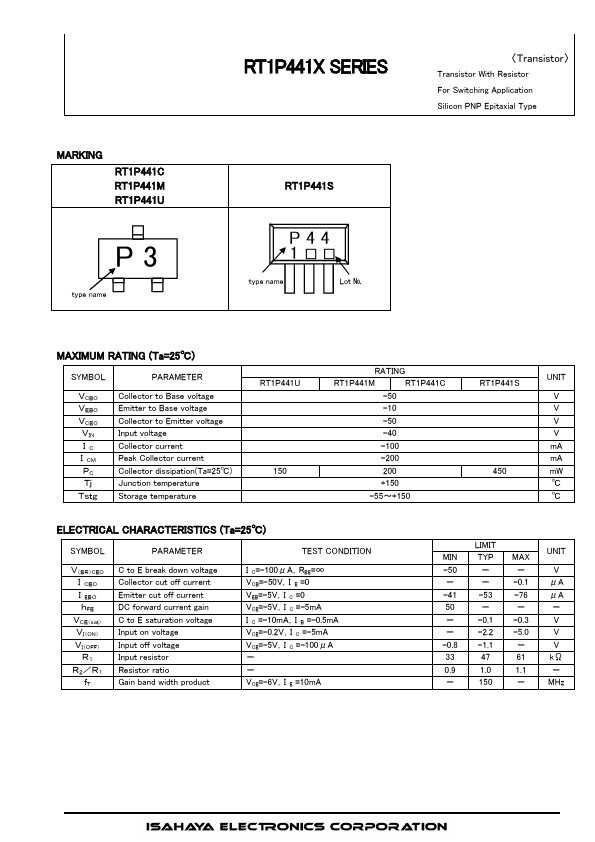

RT1P441X SERIES.
| Part Number | Description |
|---|---|
| RT1P441M | Silicon PNP Epitaxial Type Transistor |
| RT1P441S | Silicon PNP Epitaxial Type Transistor |
| RT1P440C | Silicon PNP Epitaxial Type Transistor |
| RT1P440M | Silicon PNP Epitaxial Type Transistor |
| RT1P440S | Silicon PNP Epitaxial Type Transistor |
| RT1P440U | Silicon PNP Epitaxial Type Transistor |
| RT1P44BC | Silicon PNP Epitaxial Type Transistor |
| RT1P44BM | Silicon PNP Epitaxial Type Transistor |
| RT1P44BS | Silicon PNP Epitaxial Type Transistor |
| RT1P44BU | Silicon PNP Epitaxial Type Transistor |
