VLA591-01R - DRIVER FOR IGBT MODULES

Key Features

  • -Low height, DIP structure -Dual gate drive circuits -Built in high isolation voltage digital isolators -Built in isolated DC-DC converter for gate drive -Built in short circuit protection with soft gate shut down -Adjustable fall time on activity of short circuit protection -Output peak gate current is +/-20A(max) -Isolation voltage is 4000Vrms (for 1 minute) -CMOS compatible input interface (Input high active type) -Low voltage lock out for gate power supply(VCC).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
VLA500-01 Hybrid IC IGBT Gate Driver + DC/DC Converter POWEREX
VLA500-01 HYBRID IC DRIVER Isahaya Electronics Corporation
VLA500K-01R HYBRID IC DRIVER Isahaya Electronics Corporation
VLA503 Hybrid IC IGBT Gate Driver Powerex Power Semiconductors
VLA513 Hybrid IC IGBT Gate Driver Powerex Power Semiconductors

Other Datasheets by Isahaya Electronics Corporation

Part Number Description
VLA598-01R DRIVER FOR IGBT MODULES
VLA500-02R DRIVER FOR IGBT MODULES
VLA502-01 DRIVER FOR IGBT MODULES
VLA503-01R DRIVER
VLA504-01R DRIVER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

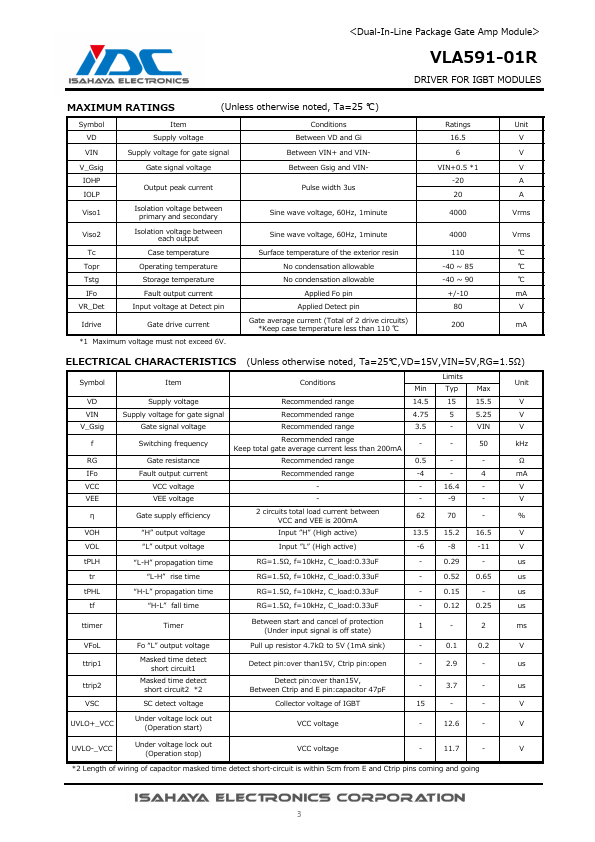

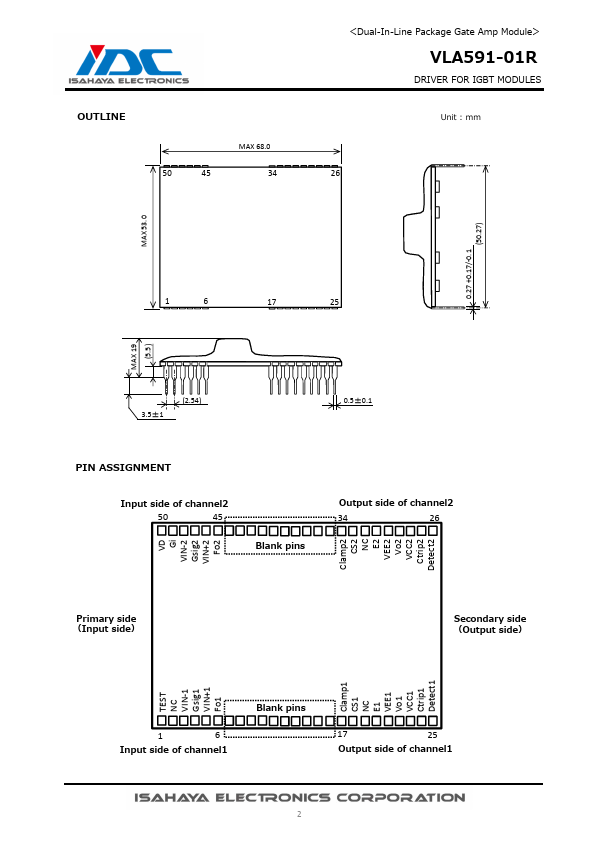

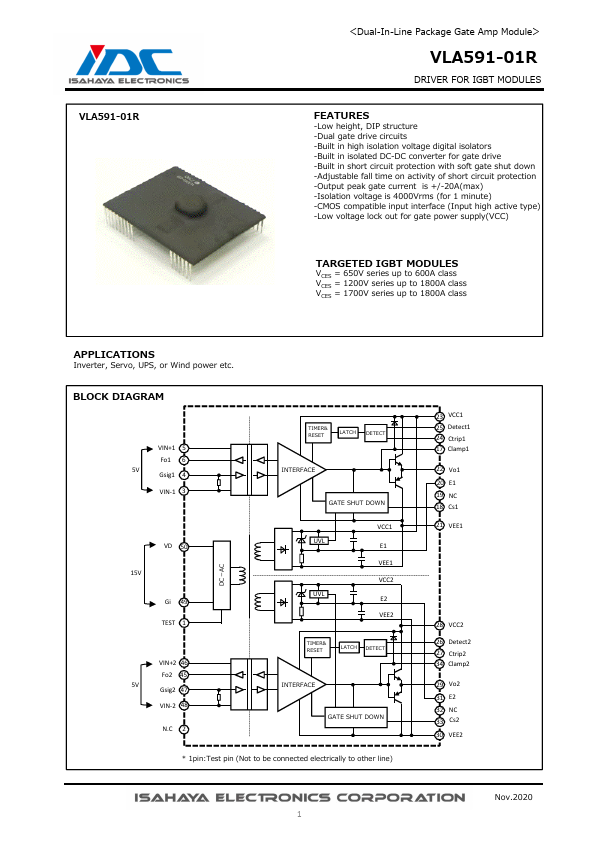

VLA591-01R ＜Dual-In-Line Package Gate Amp Module＞ VLA591-01R DRIVER FOR IGBT MODULES FEATURES -Low height, DIP structure -Dual gate drive circuits -Built in high isolation voltage digital isolators -Built in isolated DC-DC converter for gate drive -Built in short circuit protection with soft gate shut down -Adjustable fall time on activity of short circuit protection -Output peak gate current is +/-20A(max) -Isolation voltage is 4000Vrms (for 1 minute) -CMOS compatible input interface (Input high active type) -Low voltage lock out for gate power supply(VCC) TARGETED IGBT MODULES VCES = 650V series up to 600A class VCES = 1200V series up to 1800A class VCES = 1700V series up to 1800A class APPLICATIONS Inverter, Servo, UPS, or Wind power etc.
