CJ92910 - 4.5V~100V 1A DC-DC Step-Down Converter

General Description

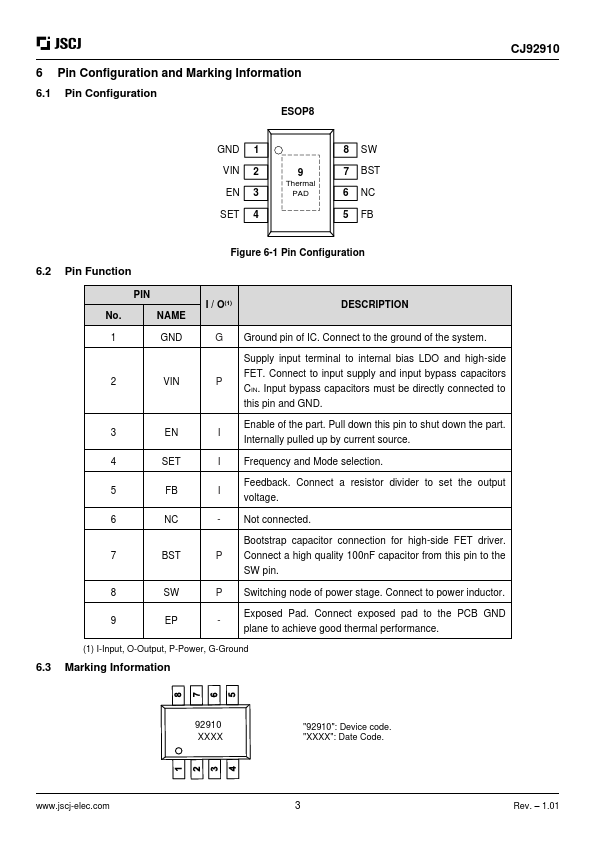

G Ground pin of IC.

Connect to the ground of the system.

FET.

Key Features

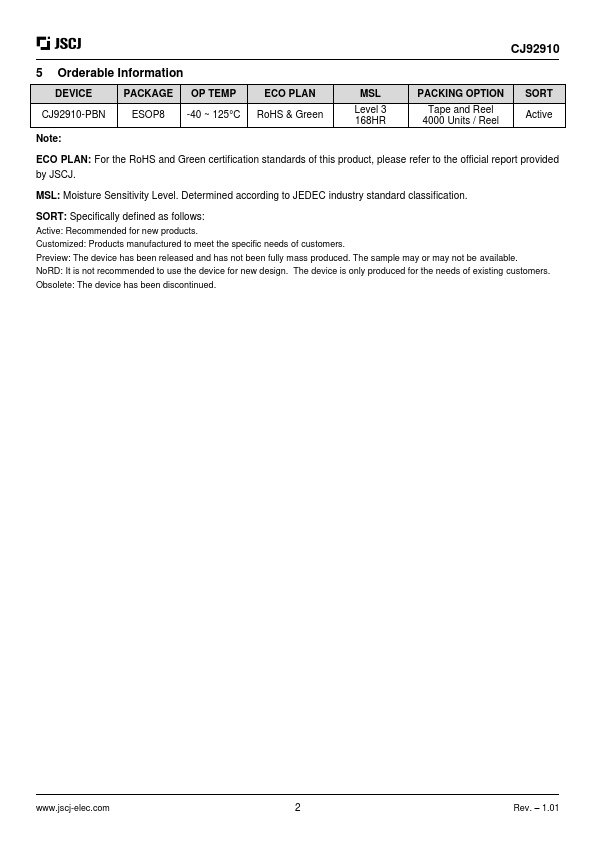

  • such as cycle-by-cycle current limit, hiccup mode short-circuit protection, output over voltage protection, FB open protection and thermal shutdown in case of excessive power dissipation. The CJ92910 is available in a space-saving ESOP8 package. 2 Available Packages PART NUMBER.

📥 Download Datasheet

Datasheet Details

Part number CJ92910
Manufacturer JCET
File Size 0.96 MB
Description 4.5V~100V 1A DC-DC Step-Down Converter
Datasheet download datasheet CJ92910 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by JCET

Part Number Description
CJ92920 4.5V~100V 1.5A DC-DC Step-Down Converter
CJ92340 30V 4A 350kHz DC/DC Step-Down Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

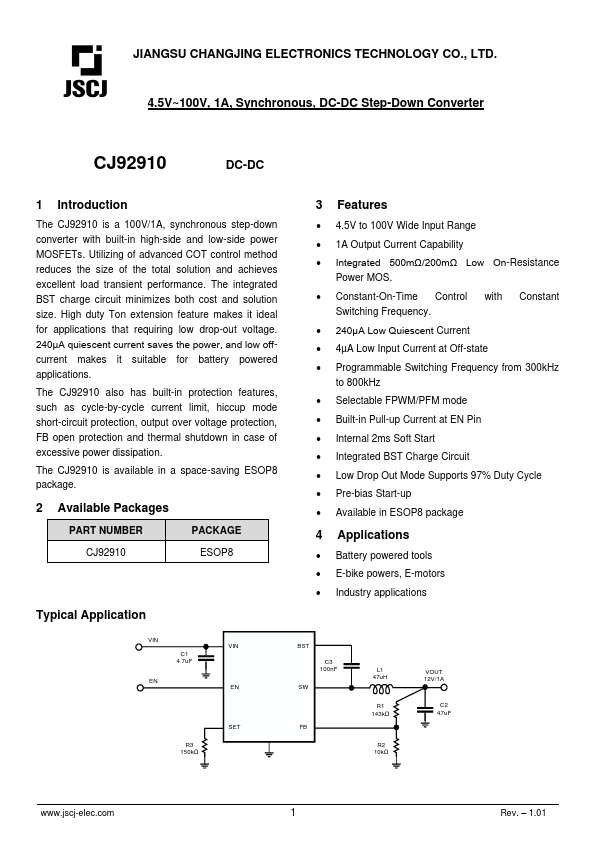

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD. 4.5V~100V, 1A, Synchronous, DC-DC Step-Down Converter CJ92910 DC-DC 1 Introduction The CJ92910 is a 100V/1A, synchronous step-down converter with built-in high-side and low-side power MOSFETs. Utilizing of advanced COT control method reduces the size of the total solution and achieves excellent load transient performance. The integrated BST charge circuit minimizes both cost and solution size. High duty Ton extension feature makes it ideal for applications that requiring low drop-out voltage. 240μA quiescent current saves the power, and low offcurrent makes it suitable for battery powered applications.
