PCR0.6 Overview
Key Specifications
Mount Type: Screw
Operating Voltage: 300 V
Height: 13.5 mm
Length: 39.878 mm
Description

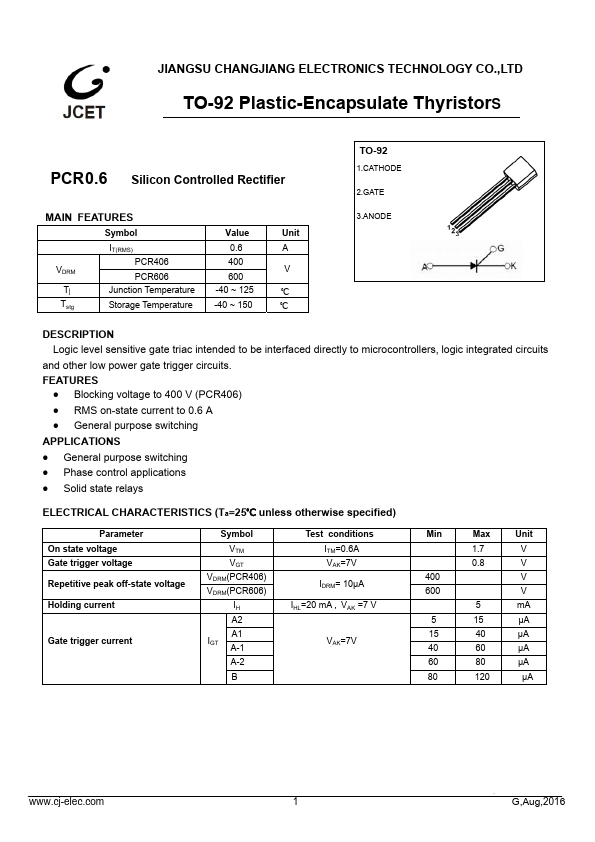

Logic level sensitive gate triac intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits. FEATURES z Blocking voltage to 400 V (PCR406) z RMS on-state current to 0.6 A z General purpose switching APPLICATIONS z General purpose switching z Phase control applications z Solid state relays Parameter On state voltage Gate trigger voltage Repetitive peak off-state voltage Holding current Gate trigger current Symbol Test conditions VTM = ITM 0.6A VGT = VAK 7V VDRM(PCR406) VDRM(PCR606) IDRM= 10µA IH IHL=20 mA , VAK = 7 V A2 A1 IGT A-1 VAK=7V A-2 B Min Max Unit 1.7 V 0.8 V 400 V 600 V 5 mA 5 15 µA 15 40 µA 40 60 µA 60 80 µA 80 120 µA 1 G,Aug,2016 TO-92 Package Outline Dimensions Symbol A A1 b c D D1 E e e1 L Φ h Dimensions In Millimeters Min Max 3.300 3.700 1.100 1.400 0.380 0.550 0.360 0.510 4.300 4.700 3.430 4.300 4.700 1.270 TYP 2.440 2.640 14.100 14.500 1.600 0.000 0.380 Dimensions In Inches Min Max 0.130 0.146 0.043 0.055 0.015 0.022 0.014 0.020 0.169 0.185 0.135 0.169 0.185 0.050 TYP 0.096 0.104 0.555 0.571 0.063 0.000 0.015 TO-92 Suggested Pad Layout 2 G,Aug,2016 TO-92 7DSHDQG5HHO ZZZFMHOHFFRP3 G,Aug,2016.
Key Features
- 40 ~ 125 -40 ~ 150 Unit A V
