PCR0.6A - Silicon Controlled Rectifiers

Key Features

  • s.
  • RMS on-state current to 0.6 A.
  • General purpose switching TO-92 4.58 +0.25.
  • 0.15 0.46 ±0.10 4.58 ±0.20 Unit: mm 14.47 ±0.40 3.86MAX +0.10.
  • 0.05 1 2 3 1.27TYP 1.27TYP [1.27 ±0.20] [1.27 ±0.20] 3.60 ±0.20 (0.25) (R2.29) 0.38 +0.10.
  • 0.05 1.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PCR0.6A Silicon Planar pnpn Thyristor JIANGSU
PCR0.6A Silicon Planar pnpn Thyristor TGS
PCR0.6 Silicon Controlled Rectifier JCET
PCR160 Peak Clamp Rectifiers GOOD-ARK
PCR206 SCRs HaoHai

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

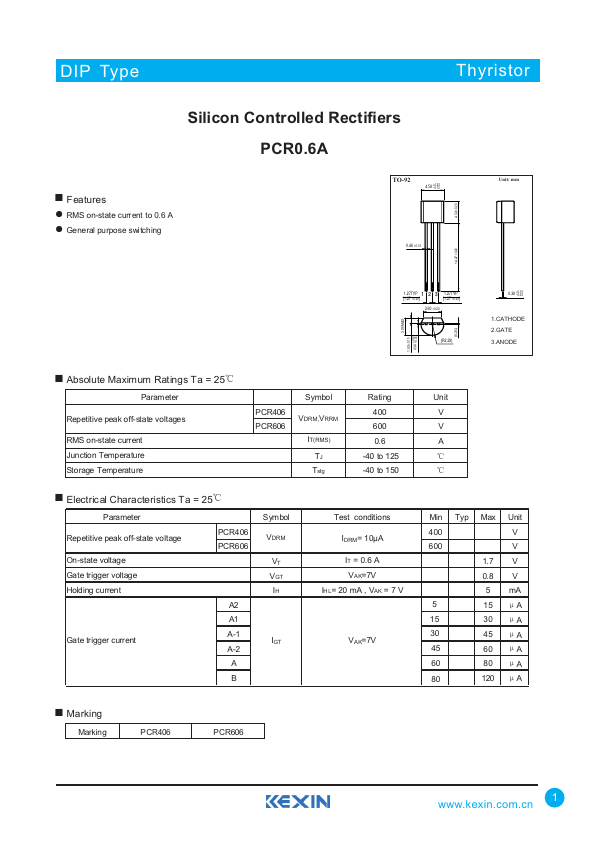

DIP Type Thyristor Silicon Controlled Rectifiers PCR0.6A ■ Features ● RMS on-state current to 0.6 A ● General purpose switching TO-92 4.58 +0.25 –0.15 0.46 ±0.10 4.58 ±0.20 Unit: mm 14.47 ±0.40 3.86MAX +0.10 –0.05 1 2 3 1.27TYP 1.27TYP [1.27 ±0.20] [1.27 ±0.20] 3.60 ±0.20 (0.25) (R2.29) 0.38 +0.10 –0.05 1.CATHODE 1.Base 2.GATE 2.Emitter 3.ANODE 3.collector 0.38 1.02 ±0.10 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Repetitive peak off-state voltages RMS on-state current Junction Temperature Storage Temperature PCR406 PCR606 Symbol VDRM,VRRM IT(RMS) TJ Tstg Ra ti ng 400 600 0.
