JGD ESD3Z12

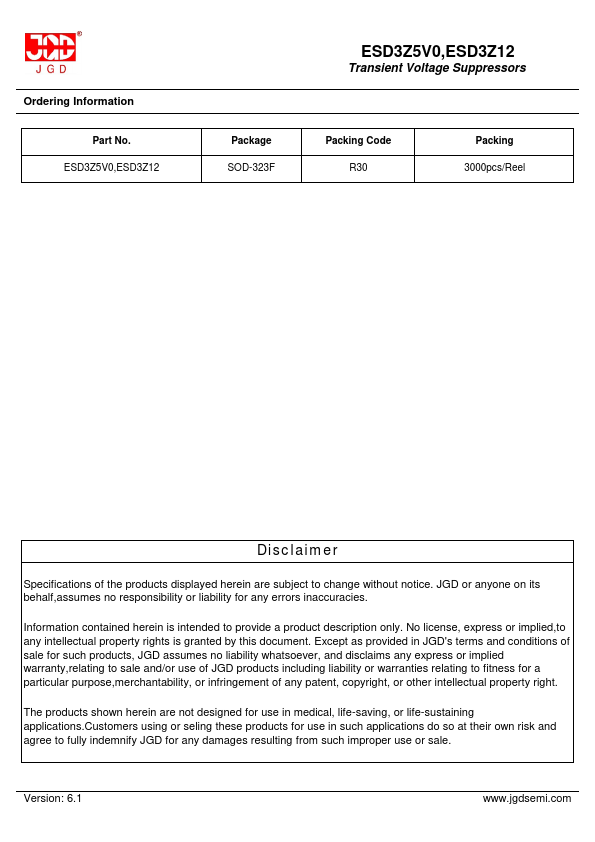

The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.Customers using or seling these products for use in such applications do so at their own risk and agree to fully indemnify JGD for any damages resulting from such improper use or sale.| Part No. | ESD3Z12 |
|---|---|
| Datasheet | ESD3Z12 Download |
| Manufacturer |  JGD |
| Description | Transient Voltage Suppressors |
| Buy | Stock & Price |

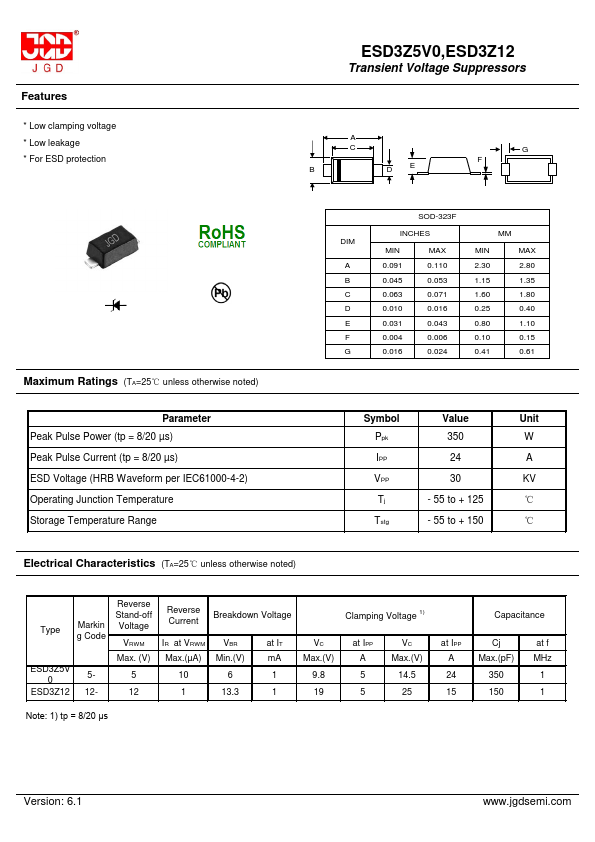

FEATURES
* Low clamping voltage * Low leakage * For ESD protection ESD3Z5V0,ESD3Z12 Transient Voltage Suppressors A C B DE G FMAXIMUM RATINGS
(TA=25℃ unless otherwise noted) Parameter Peak Pulse Power (tp = 8/20 µs) Peak Pulse Current (tp = 8/20 µs) ESD Voltage (HRB Waveform per IEC61000-4-2) Operating Junction Temperature Storage Temperature Range SOD-323F INCHES MM DIM MIN MAX MIN MAX A 0.091 0.110 2.30 2.80 B 0.045 0.053 1.15 1.35 C 0.063 0.071 1.60 1.80 D 0.010 0.016 0.25 0.40 E 0.031 0.043 0.80 1.10 F 0.004 0.006 0.10 0.15 G 0.016 0.024 0.41 0.61 Symbol Ppk IPP VPP Tj Tstg Value 350 24 30 - 55 to + 125 - 55 to + 150 Unit W A KV ℃ ℃ELECTRICAL CHARACTERISTICS
(TA=25℃ unless otherwise noted) Type Markin g Code Reverse Stand-off Voltage VRWM Reverse Breakdown Voltage Current IR at VRWM VBR at IT Max. (V) Max.(µA) Min.(V) mA ESD3Z5V 0 5- 5 10 6 1 ESD3Z12 12- 12 1 13.3 1 VC Max.(V) 9.8 19 Clamping Voltage 1) at IPP A 5 5 VC Max.(V) 14.5 25 at IPP A 24 15 Capacitance Cj Max.(pF) 350 15...
