SEMIPOWER ESD3Z12
The ESD3Z5V0 Series is designed to protect voltage sensitive components from ESD and transient voltage events.| Part No. | ESD3Z12 |
|---|---|
| Datasheet | ESD3Z12 Download |
| Manufacturer |  SEMIPOWER |
| Description | Transient Voltage Suppressors for ESD Protection |
| Buy | Stock & Price |

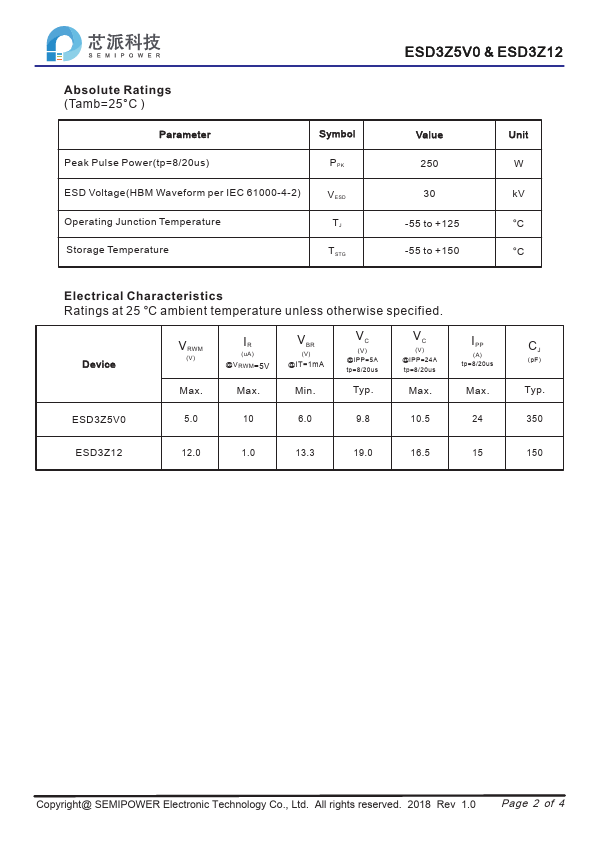

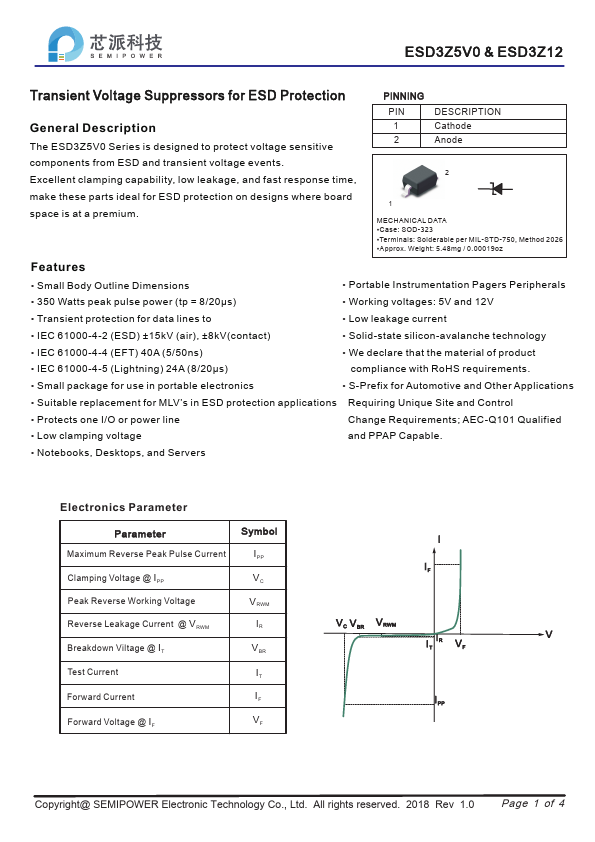

GENERAL DESCRIPTION
Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. PINNING PIN 1 2DESCRIPTION
Cathode Anode 2 1MECHANICAL DATA
●Case: SOD-323●Terminals: Solderable per MIL-STD-750, Method 2026
●Approx. Weight: 5.48mg / 0.00019oz
FEATURES
● Small Body Outline Dimensions● Portable Instrumentation Pagers Peripherals
● 350 Watts peak pulse power (tp = 8/20μs)
● Working voltages: 5V and 12V
● Transient protection for data lines to
● Low leakage current
● IEC 61000-4-2 (ESD) ±15kV (air), ±8kV(contact)
● Solid-state silicon-avalanche technology
● IEC 61000-4-4 (EFT) 40A (5/50ns)
● We declare that the material of product
● IEC 61000-4-5 (Lightning) 24A (8/20μs) compliance with RoHS requirements.
● Small package for use in portable electronics
● S-Prefix for Automotive and Other
APPLICATIONS
● Suitable replacement for MLV’s in ESD protection applications Requiring Unique Site and Control● Protects one I/O or power line Change Requirements; AEC-Q101 Qualified
● Low clamping voltage and PPAP Capable.
