Datasheet Summary
Features

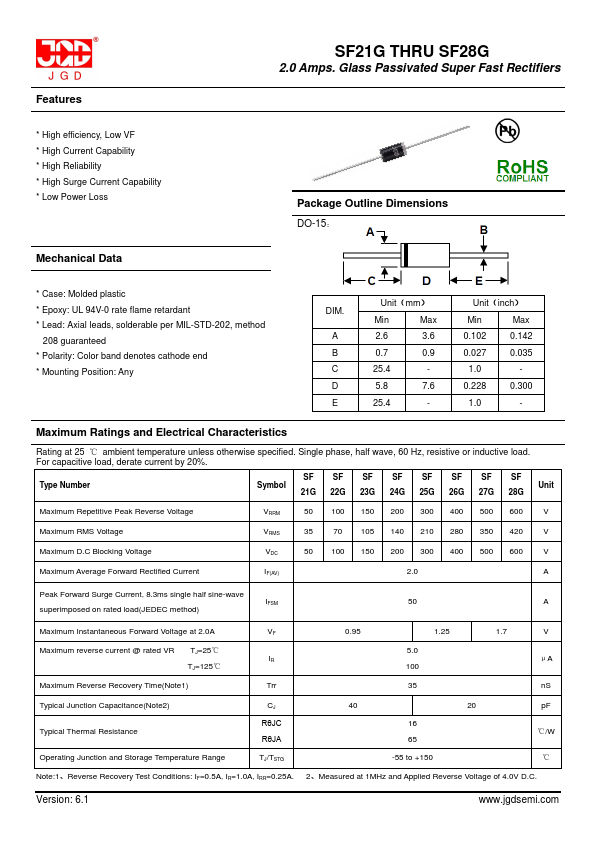

SF21G THRU SF28G
2.0 Amps. Glass Passivated Super Fast Rectifiers
- High efficiency, Low VF
- High Current Capability
- High Reliability
- High Surge Current Capability
- Low Power Loss
Mechanical Data
Package Outline Dimensions
DO-15：
- Case: Molded plastic
- Epoxy: UL 94V-0 rate flame retardant
- Lead: Axial leads, solderable per MIL-STD-202, method
208 guaranteed
- Polarity: Color band denotes cathode end
- Mounting Position: Any
DIM.
A B C D E
Unit（mm）
Min
Max
- 5.8
- Unit（inch）
Min
Max
- 0.228
- Maximum Ratings and Electrical Characteristics
Rating at 25 ℃ ambient temperature...
