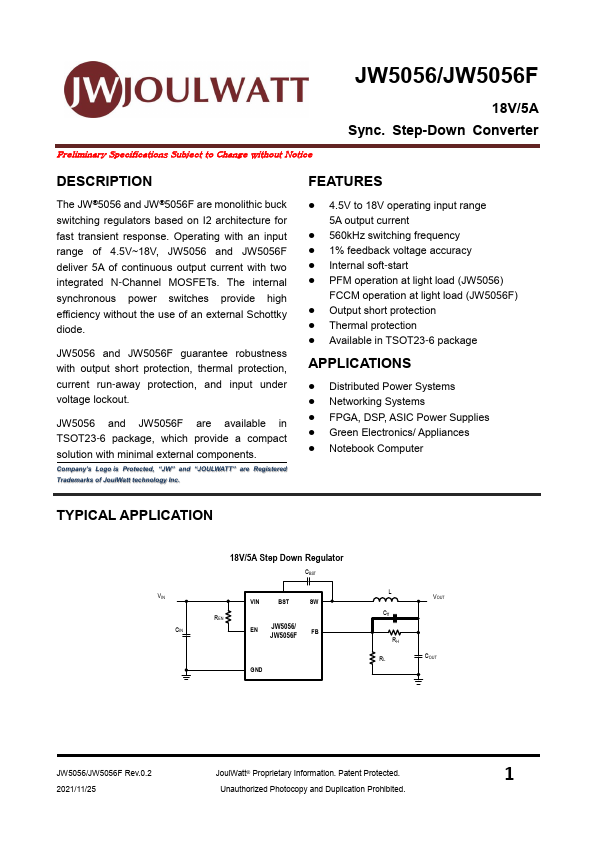

JW5056 Datasheet 18V/5A Sync. Step-Down Converter

Manufacturer: JoulWatt

📥 Download Datasheet

Datasheet Details

Part number JW5056
Manufacturer JoulWatt
File Size 1.25 MB
Description 18V/5A Sync. Step-Down Converter
Download JW5056 Download (PDF)

General Description

The JW®5056 and JW®5056F are monolithic buck switching regulators based on I2 architecture for fast transient response.

Operating with an input range of 4.5V~18V, JW5056 and JW5056F deliver 5A of continuous output current with two integrated N-Channel MOSFETs.

The internal synchronous power switches provide high efficiency without the use of an external Schottky diode.

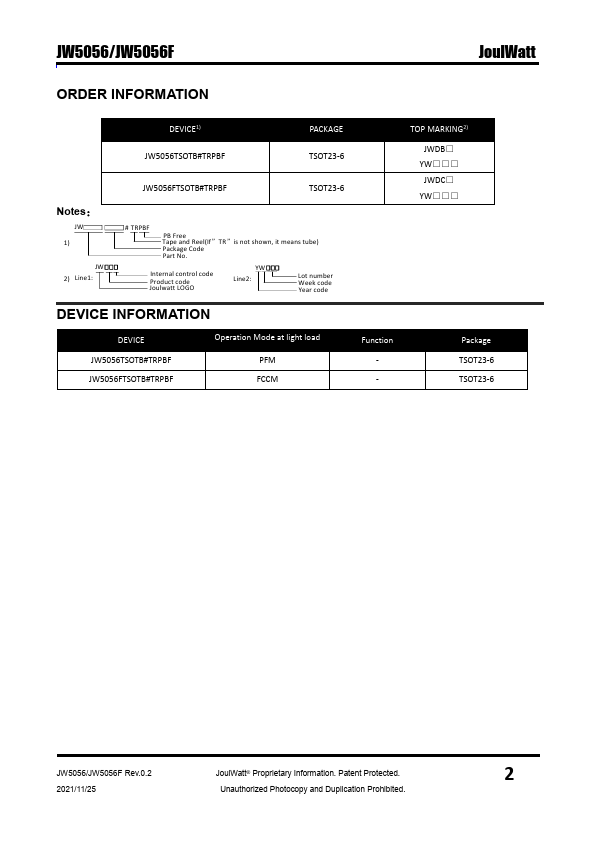

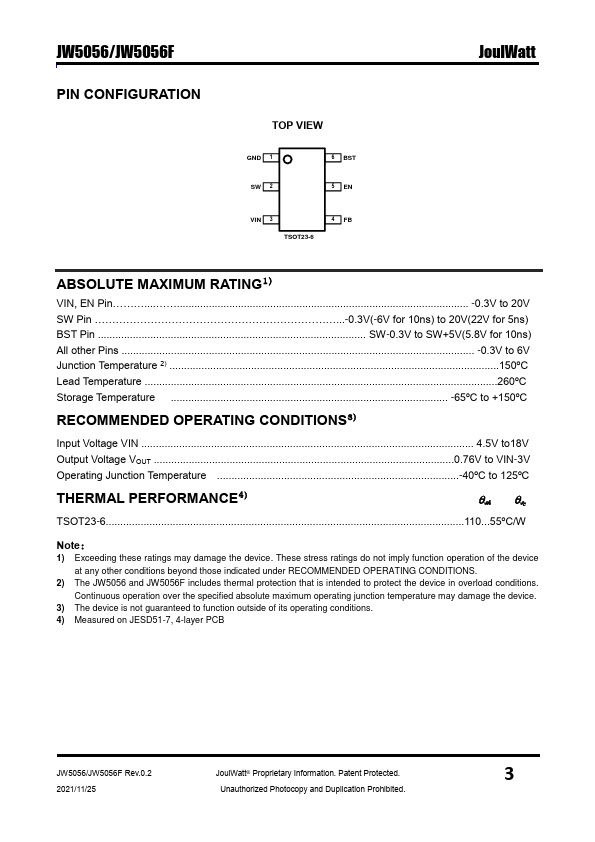

Overview

JW5056/JW5056F Preliminary Specifications Subject to Change without Notice 18V/5A Sync.

Key Features

  • 4.5V to 18V operating input range 5A output current.
  • 560kHz switching frequency.
  • 1% feedback voltage accuracy.
  • Internal soft-start.
  • PFM operation at light load (JW5056) FCCM operation at light load (JW5056F).
  • Output short protection.
  • Thermal protection.
  • Available in TSOT23-6 package.
