JW5061TC - 18V/3A Sync. Step-Down Converter

General Description

The JW®5061TC and JW®5061TF are monolithic buck switching regulators based on I2 architecture for fast transient response.

Operating with an input range of 4.5V~18V, JW5061TC and JW5061TF deliver 3A of continuous output current with two integrated N-Channel MOSFETs.

Key Features

  • 4.5V to 18V operating input range 3A output current.
  • Up to 95% efficiency.
  • FCCM at light load (JW5061TF).
  • PFM at light load (JW5061TC).
  • 600kHz switching frequency.
  • Internal soft-start.
  • Input under voltage lockout.
  • Current run-away protection.
  • Output short protection.
  • Thermal protection.
  • Available in SOT23-6 packages.

📥 Download Datasheet

Datasheet Details

Part number JW5061TC
Manufacturer JoulWatt
File Size 1.07 MB
Description 18V/3A Sync. Step-Down Converter
Datasheet download datasheet JW5061TC Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
JW5026 16 Constant Current LED Driver RISETEK

Other Datasheets by JoulWatt

Part Number Description
JW5061TF 18V/3A Sync. Step-Down Converter
JW5060T Step-Down Converter
JW5068A 23V/8A Step-Down Converter
JW5015 40V Synchronous Rectified Step-Down Converter
JW5015A 2A 40V Synchronous Step-Down Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

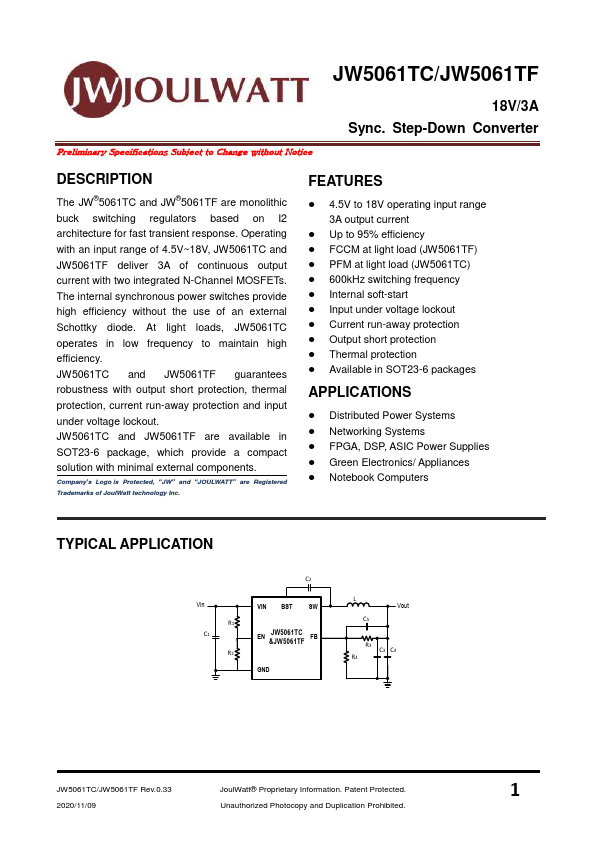

JW5061TC/JW5061TF Preliminary Specifications Subject to Change without Notice 18V/3A Sync. Step-Down Converter DESCRIPTION The JW®5061TC and JW®5061TF are monolithic buck switching regulators based on I2 architecture for fast transient response. Operating with an input range of 4.5V~18V, JW5061TC and JW5061TF deliver 3A of continuous output current with two integrated N-Channel MOSFETs. The internal synchronous power switches provide high efficiency without the use of an external Schottky diode. At light loads, JW5061TC operates in low frequency to maintain high efficiency. JW5061TC and JW5061TF guarantees robustness with output short protection, thermal protection, current run-away protection and input under voltage lockout.
