JW5121 - 60V/2A Asynchronous Step-Down Converter

Datasheet Summary

Description

The JW®5121 is a current mode monolithic buck switching regulator.

Operating with an input range of 4.5V~60V, the JW5121 delivers 2A of continuous output current with an integrated high side N-Channel MOSFET.

Features

  • 4.5V to 60V operating input range 2A output current.
  • High efficiency at light load.
  • Internal soft-start (ESOP8).
  • Adjustable soft-start (EMSOP10).
  • Adjustable switching frequency.
  • Input under voltage lockout.
  • Current run-away protection.
  • Short circuit protection.
  • Thermal protection.
  • Available in ESOP8 and EMSOP10 package.

📥 Download Datasheet

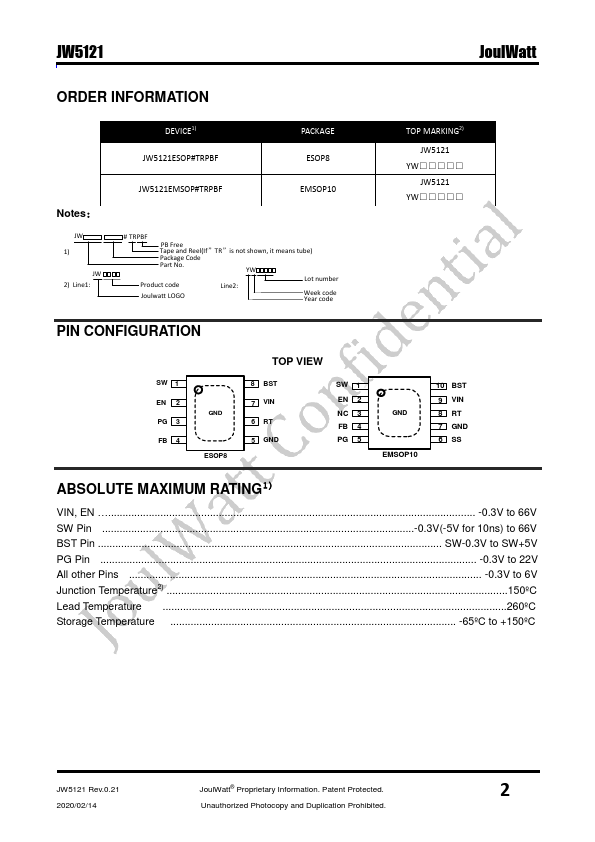

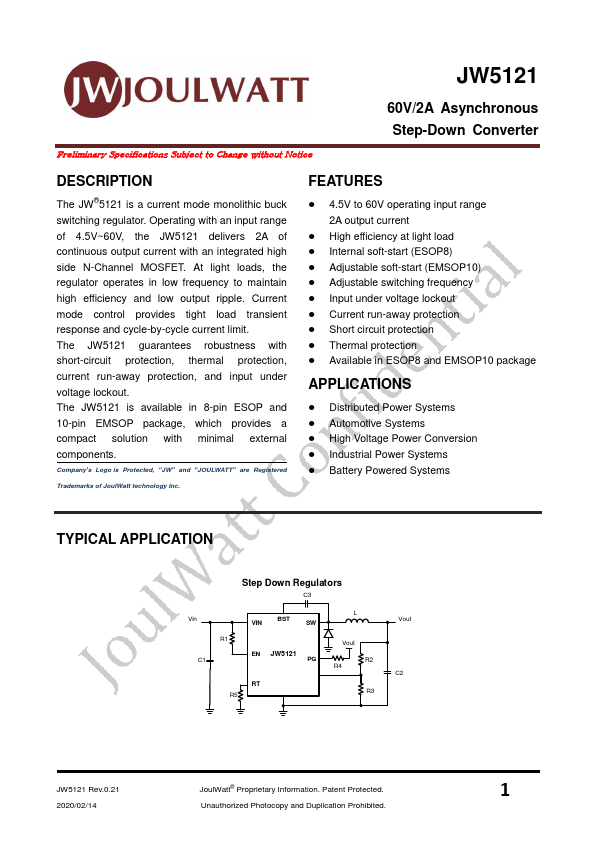

Datasheet preview – JW5121

Datasheet Details

Part number JW5121
Manufacturer JoulWatt
File Size 1.08 MB
Description 60V/2A Asynchronous Step-Down Converter
Datasheet download datasheet JW5121 Datasheet

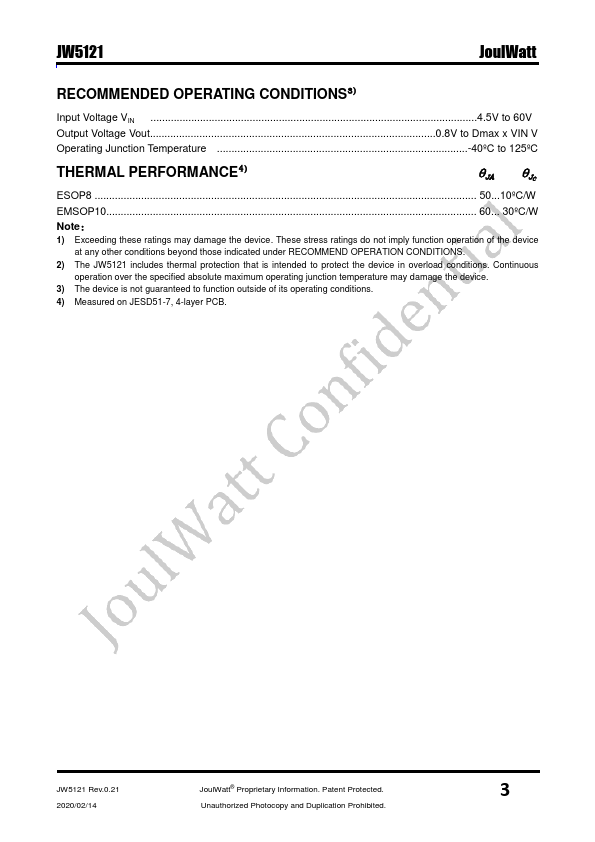

Additional preview pages of the JW5121 datasheet.
