JW5213L Datasheet 3a 6v 50ua Synchronous Step-down Converter

Manufacturer: JoulWatt

Overview: JW5213L 3A, 6V, 1MHz, 50uA IQ Synchronous Step-Down Converter Preliminary Specifications Subject to Change without.

Datasheet Details

Part number JW5213L
Manufacturer JoulWatt
File Size 1.11 MB
Description 3A 6V 50uA Synchronous Step-Down Converter
Datasheet JW5213L-JoulWatt.pdf

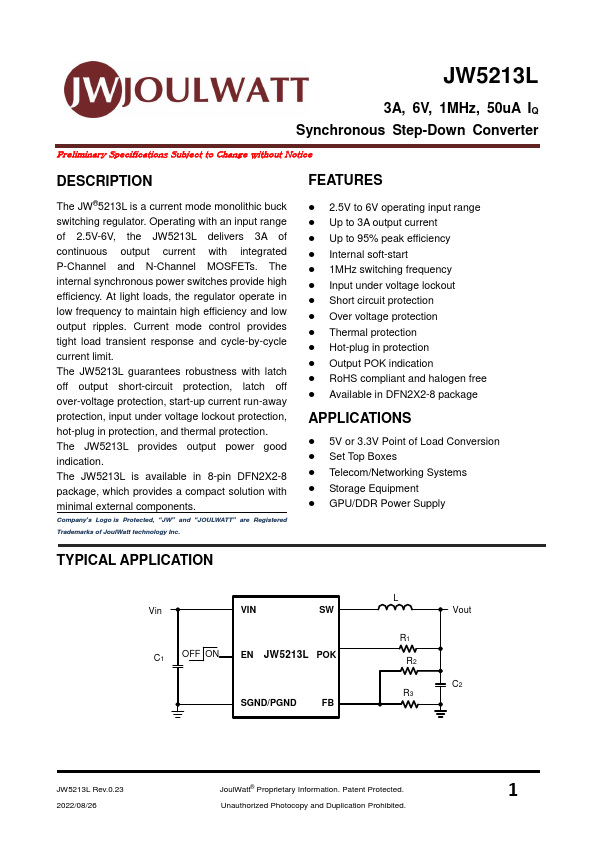

General Description

The JW®5213L is a current mode monolithic buck switching regulator.

Operating with an input range of 2.5V-6V, the JW5213L delivers 3A of continuous output current with integrated P-Channel and N-Channel MOSFETs.

The internal synchronous power switches provide high efficiency.

Key Features

  • 2.5V to 6V operating input range.
  • Up to 3A output current.
  • Up to 95% peak efficiency.
  • Internal soft-start.
  • 1MHz switching frequency.
  • Input under voltage lockout.
  • Short circuit protection.
  • Over voltage protection.
  • Thermal protection.
  • Hot-plug in protection.
  • Output POK indication.
  • RoHS compliant and halogen free.
  • Available in DFN2X2-8 package.
