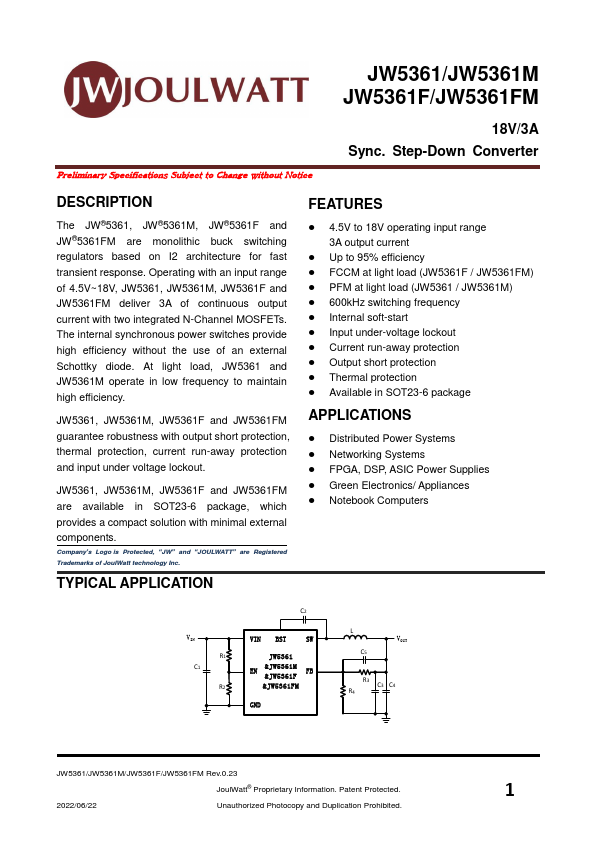

JW5361M Description
The JW®5361, JW®5361M, JW®5361F and JW®5361FM are monolithic buck switching regulators based on I2 architecture for fast transient response. Operating with an input range of 4.5V~18V, JW5361, JW5361M, JW5361F and JW5361FM deliver 3A of continuous output current with two integrated N-Channel MOSFETs. The internal synchronous power switches provide high efficiency without the use of an external Schottky diode.
JW5361M Key Features
- 4.5V to 18V operating input range 3A output current
- Up to 95% efficiency
- FCCM at light load (JW5361F / JW5361FM)
- PFM at light load (JW5361 / JW5361M)
- 600kHz switching frequency
- Internal soft-start
- Input under-voltage lockout
- Current run-away protection
- Output short protection
- Thermal protection
