JW5520S - Synchronous Step-up Boost Converter

General Description

The JW®5520S is a synchronous high-efficiency, boost converter with true output disconnection.

The device adopts constant-off-time (COT) control topology.

The device can start up from an input voltage as low as 1.2V.

Key Features

  • 1.2V Minimum Start-up Input Voltage.
  • 1.2V to 5.5V Input Voltage Range.
  • 2.5V to 5.5V Output Voltage Range.
  • Support 5V/3.5A Output from 2.8V Input.
  • Up to 9A Programmable Switch Peak Current Limit.
  • Programmable Average Load Current Limit.
  • 600kHz Pseudo-Constant Frequency Switching.
  • Low Quiescent Current:.

📥 Download Datasheet

Datasheet Details

Part number JW5520S
Manufacturer JoulWatt
File Size 1.10 MB
Description Synchronous Step-up Boost Converter
Datasheet download datasheet JW5520S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
JW5026 16 Constant Current LED Driver RISETEK

Other Datasheets by JoulWatt

Part Number Description
JW5510 20V 10A Fully-integrated Synchronous Boost Converter
JW5015 40V Synchronous Rectified Step-Down Converter
JW5015A 2A 40V Synchronous Step-Down Converter
JW5015B 40V Synchronous Step-Down Converter
JW5017S 26V Synchronous Step-Down Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

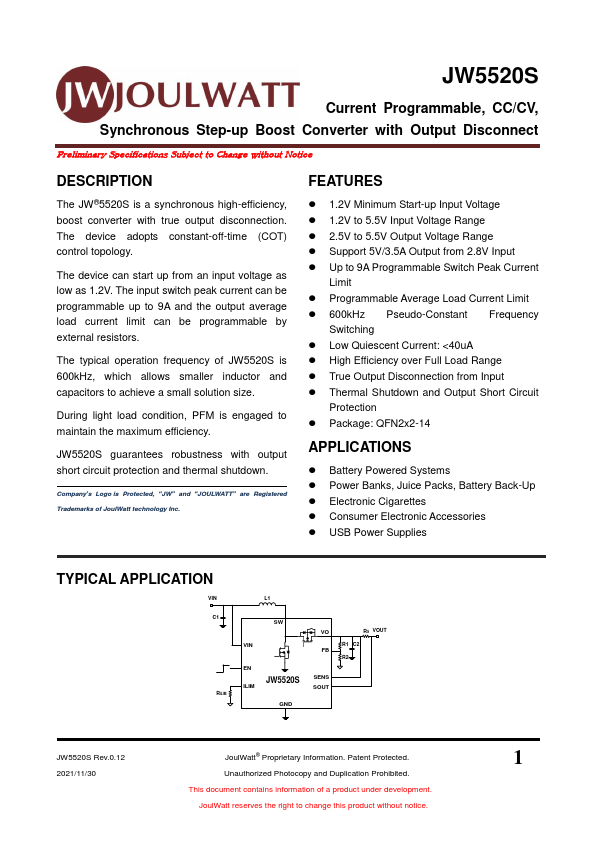

JW5520S Current Programmable, CC/CV, Synchronous Step-up Boost Converter with Output Disconnect Preliminary Specifications Subject to Change without Notice DESCRIPTION The JW®5520S is a synchronous high-efficiency, boost converter with true output disconnection. The device adopts constant-off-time (COT) control topology. The device can start up from an input voltage as low as 1.2V. The input switch peak current can be programmable up to 9A and the output average load current limit can be programmable by external resistors. The typical operation frequency of JW5520S is 600kHz, which allows smaller inductor and capacitors to achieve a small solution size. During light load condition, PFM is engaged to maintain the maximum efficiency.
