JW7805 - 6uA 300mA Low Noise Low-Dropout Linear Regulator

JoulWatt

General Description

The JW®7805 is a low noise low-dropout (LDO) voltage regulator with enable function that operates from 1.8V to 5.5V.

It provides up to 300mA of output current and offers low-power operation in miniaturized packaging.

Key Features

of low quiescent current as low as 6uA and almost zero disable current are ideal for powering the battery equipment. JW7805’s low output noise and high PSRR are also friendly to RF systems. Company’s Logo is Protected, “JW” and “.

📥 Download Datasheet

JW7805 6ua 300ma low noise low-dropout linear regulator by JoulWatt - Datasheet Preview

Datasheet Details

Part number	JW7805
Manufacturer	JoulWatt
File Size	624.94 KB
Description	6uA 300mA Low Noise Low-Dropout Linear Regulator
Datasheet	JW7805 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer

Other Datasheets by JoulWatt

Part Number	Description
JW7106	6A 5.5V Low On-Resistance Single Channel Load Switch
JW7107S	5.5V Low On-Resistance Dual-Channel Load Switch
JW7111	Single Power Switch
JW7111S	Single Power Switch
JW7111SA	Single Power Switch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

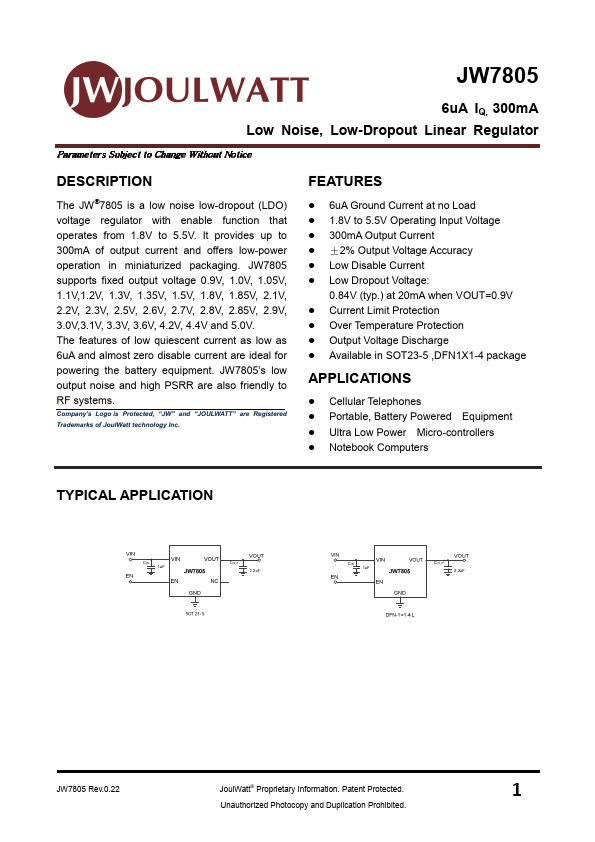

JW7805 6uA IQ, 300mA Low Noise, Low-Dropout Linear Regulator Parameters Subject to Change Without Notice DESCRIPTION The JW®7805 is a low noise low-dropout (LDO) voltage regulator with enable function that operates from 1.8V to 5.5V. It provides up to 300mA of output current and offers low-power operation in miniaturized packaging. JW7805 supports fixed output voltage 0.9V, 1.0V, 1.05V, 1.1V,1.2V, 1.3V, 1.35V, 1.5V, 1.8V, 1.85V, 2.1V, 2.2V, 2.3V, 2.5V, 2.6V, 2.7V, 2.8V, 2.85V, 2.9V, 3.0V,3.1V, 3.3V, 3.6V, 4.2V, 4.4V and 5.0V. The features of low quiescent current as low as 6uA and almost zero disable current are ideal for powering the battery equipment. JW7805’s low output noise and high PSRR are also friendly to RF systems.
