JWH3515 - Integrated DC-DC Converter

General Description

The JWH3515 is an offline miniature high-voltage power switching regulators with on-chip power switch and startup circuits.

The JWH3515 integrates all the active power, control logic and protection circuitry.

Key Features

  • Integrated 200 V Power Switch Circuit and Startup Circuit.
  • Operation up to 1 MHz.
  • External Frequency Synchronization Capability.
  • Line Undervoltage and Overvoltage Detectors.
  • Cycle by Cycle Current Limit.
  • Overtemperature Protection.
  • Internal Error Amplifier.
  • Pb-Free Packages are Available.

📥 Download Datasheet

Datasheet Details

Part number JWH3515
Manufacturer JoulWatt
File Size 812.98 KB
Description Integrated DC-DC Converter
Datasheet download datasheet JWH3515 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by JoulWatt

Part Number Description
JWH3530 Active Clamp PWM Controller
JWH5084 17V/12A Sync. Step-Down Converter
JWH5085 16V/12A Sync. Step-Down Converter
JWH5087A 16V/20A Sync. Step-Down Converter
JWH5123 65V/3.5A Asynchronous Step-Down Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

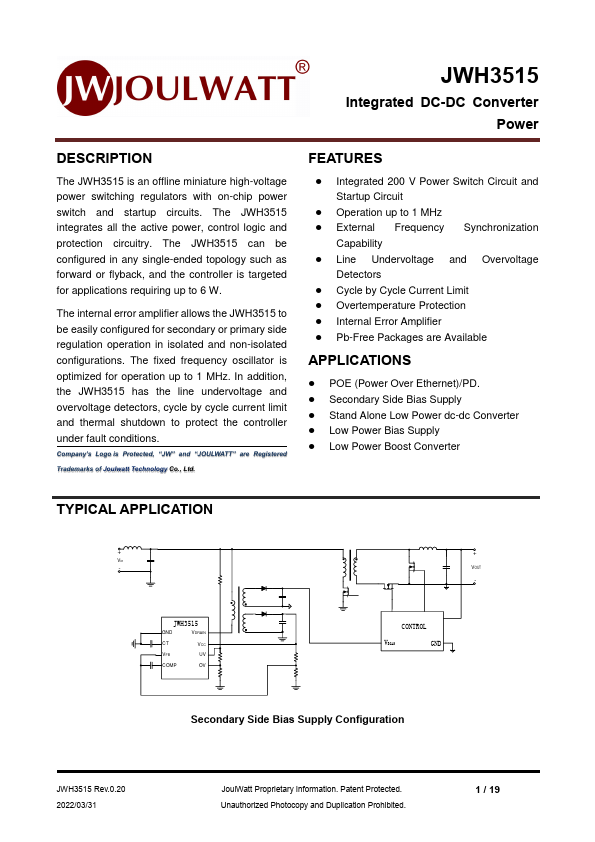

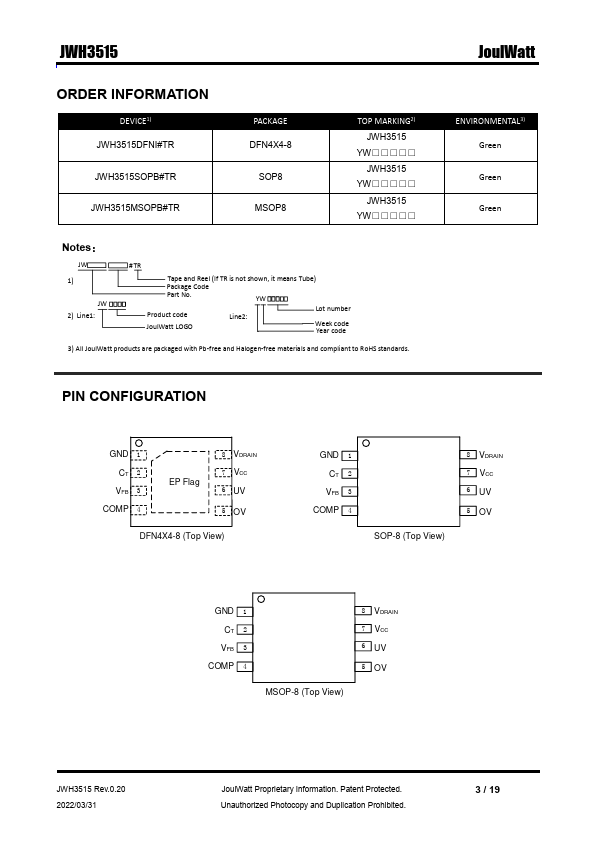

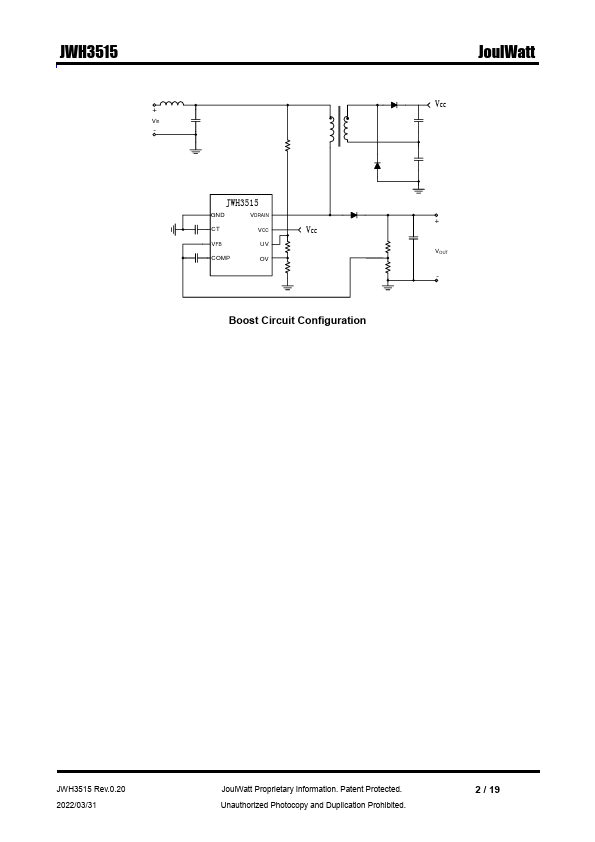

JWH3515 Integrated DC-DC Converter Power DESCRIPTION The JWH3515 is an offline miniature high-voltage power switching regulators with on-chip power switch and startup circuits. The JWH3515 integrates all the active power, control logic and protection circuitry. The JWH3515 can be configured in any single-ended topology such as forward or flyback, and the controller is targeted for applications requiring up to 6 W. The internal error amplifier allows the JWH3515 to be easily configured for secondary or primary side regulation operation in isolated and non-isolated configurations. The fixed frequency oscillator is optimized for operation up to 1 MHz.
