JWM9103A - 6V/3A Sync. Step-Down Converter

Datasheet Summary

Description

The JW®M9103A is a step-down converter module with built-in power MOSFETs and inductor.

The JWM9103A is based on COT architecture for fast transient response.

Operating with an input range of 2.9V~6V, JWM9103A delivers 3A of continuous output current with integrated P-Channel and N-Channel MOSFETs.

Features

2.9V to 6V operating input range.
Up to 3A output current.
Ultra low EMI: pass CISPR22 Class B and CISPR25 Class 5.
0.6V to VIN adjustable output voltage.
2MHz switching frequency.
100% duty cycle for lowest dropout.
Power good indicator.
Output discharge.
Input under voltage lockout.
Output short circuit protection.
Thermal protection.
Available in QFN2.5x3.5x1.6-17 package.

JoulWatt

📥 Download Datasheet

Datasheet Details

Part number	JWM9103A
Manufacturer	JoulWatt
File Size	1.70 MB
Description	6V/3A Sync. Step-Down Converter
Datasheet	JWM9103A Datasheet

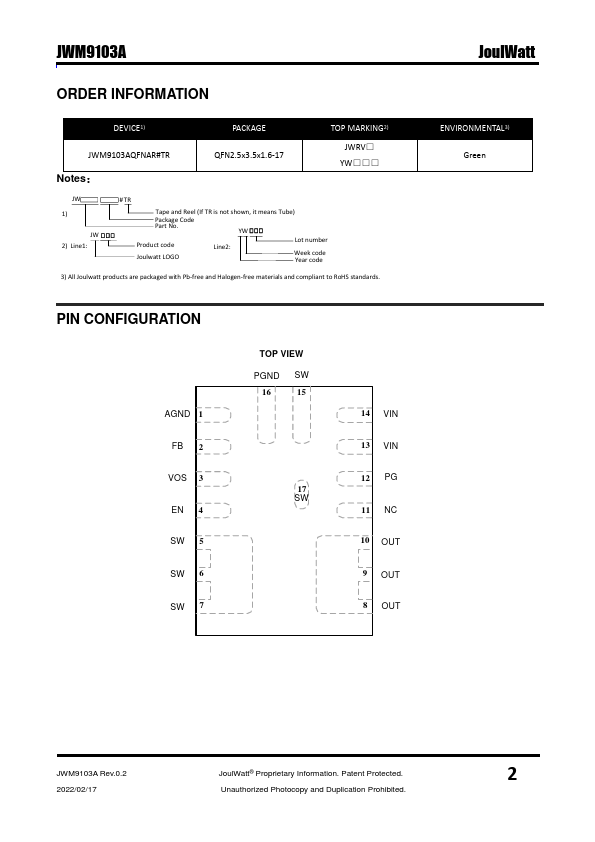

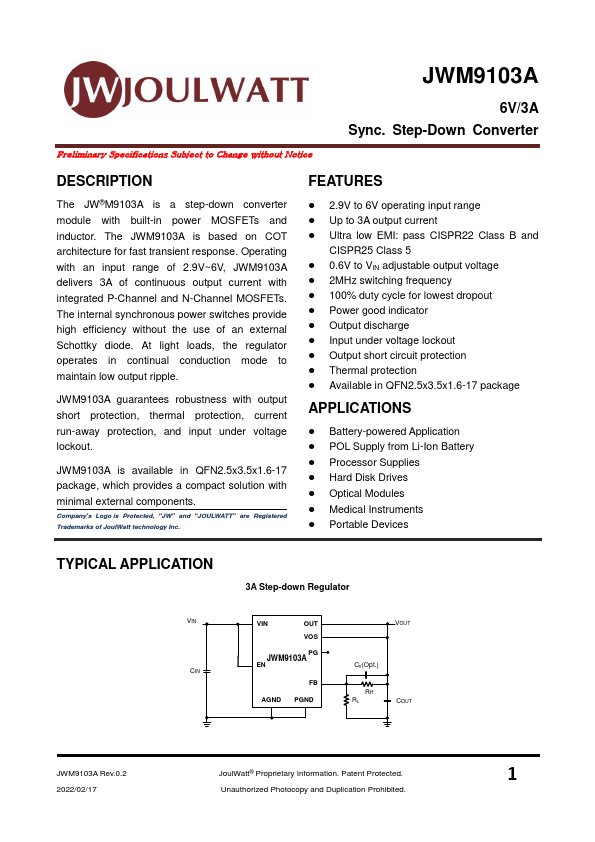

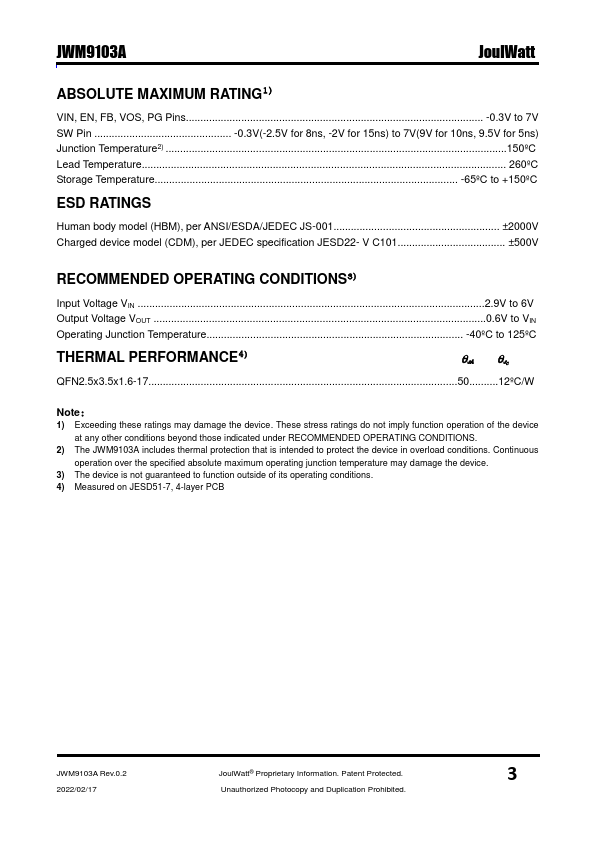

Additional preview pages of the JWM9103A datasheet.

📁 Similar Datasheet

Other Datasheets by JoulWatt

Full PDF Text Transcription

Click to expand full text

JWM9103A Preliminary Specifications Subject to Change without Notice 6V/3A Sync. Step-Down Converter DESCRIPTION The JW®M9103A is a step-down converter module with built-in power MOSFETs and inductor. The JWM9103A is based on COT architecture for fast transient response. Operating with an input range of 2.9V~6V, JWM9103A delivers 3A of continuous output current with integrated P-Channel and N-Channel MOSFETs. The internal synchronous power switches provide high efficiency without the use of an external Schottky diode. At light loads, the regulator operates in continual conduction mode to maintain low output ripple. JWM9103A guarantees robustness with output short protection, thermal protection, current run-away protection, and input under voltage lockout. JWM9103A is available in QFN2.
