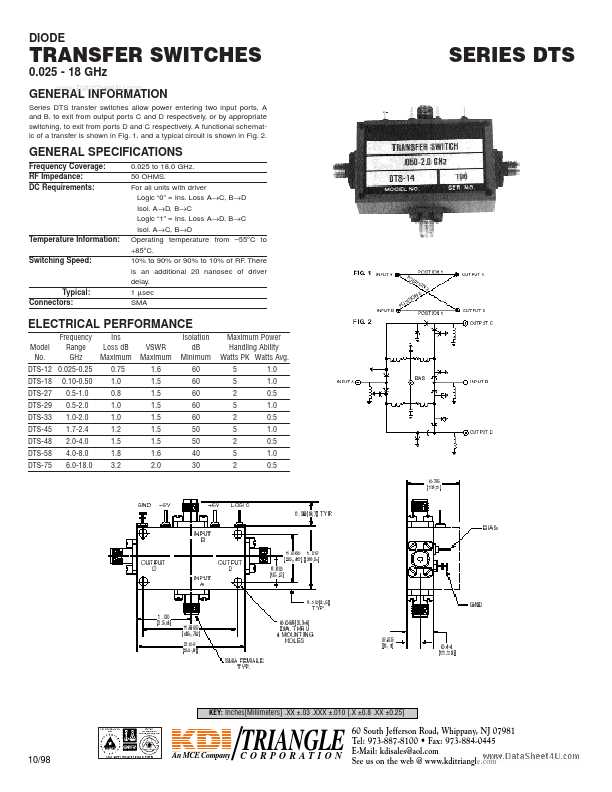

DIODE
TRANSFER SWITCHES
0.025 - 18 GHz
GENEwRwwA.DLatIaNShFeOet4RUM.coAmTION
Series DTS transfer switches allow power entering two input ports, A and B, to exit from output ports C and D respectively, or by appropriate switching, to exit from ports D and C respectively. A functional schematic of a transfer is shown in Fig. 1, and a typical circuit is shown in Fig. 2.
GENERAL SPECIFICATIONS
Frequency Coverage: RF Impedance: DC Requirements:
Temperature Information: Switching Speed:
Typical: Connectors:
0.025 to 18.0 GHz. 50 OHMS. For all units with driver
Logic “0” = Ins. Loss A→C, B→D Isol. A→D, B→C Logic “1” = Ins. Loss A→D, B→C Isol. A→C, B→D Operating temperature from –55°C to +85°C. 10% to 90% or 90% to 10% of RF. There is an additional 20 nanosec of driver delay.
DTS-12 Datasheet
