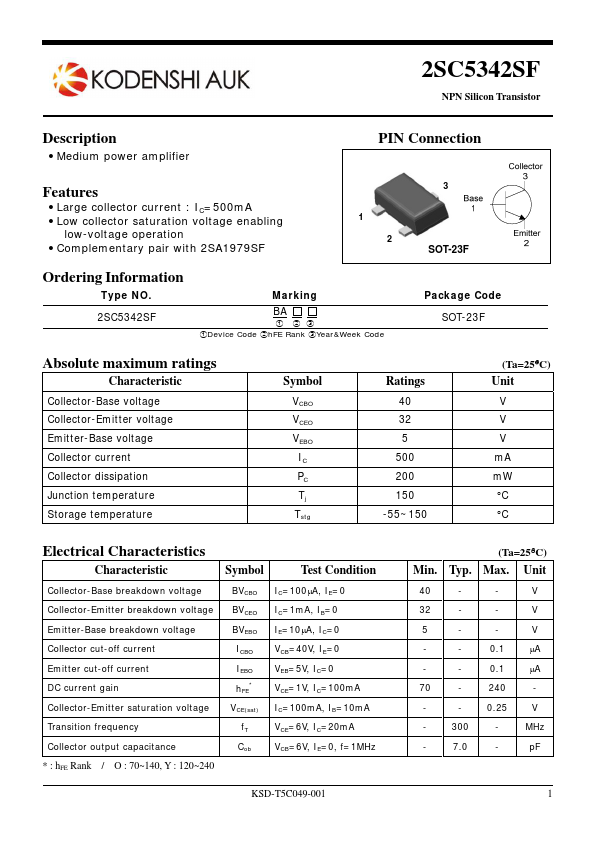

2SC5342SF
Description
- Medium power am plifier
PIN Connection
Features
- Large collect or current : I C= 500m A
- Low collect or sat urat ion volt age enabling low-voltage operation
- plem ent ary pair wit h 2SA1979SF
1 2
SOT-23F
Ordering Information
Type NO.
2 SC5 3 4 2 SF
Marking BA
Device Code h FE Rank Year&Week Code
Pa ck a ge Code SOT- 23F
Absolute maximum ratings
Characteristic
Collect or- Base volt age Collect or- Em it t er volt age Em it t er- Base volt age Collect or current Collect or dissipat ion Junct ion t em perat ure Storage tem perature
Symbol
VCBO VCEO VEBO
IC PC Tj Tst g
Ratings
40 32 5 500 200 150 -55~ 150
(Ta=25°C)
Unit
V V V m A m W °C °C
Electrical Characteristics
Characteristic
Symbol
Test Condition
Collect or- Base breakdown volt age
BVCBO I C= 100μA, I E= 0
Collect or- Em it t er break dow n volt age BVCEO I C= 1m A, I B= 0
Em it t er- Base breakdown volt age
BVEBO I E= 10μA, I C= 0
Collect or cut- off current
I CBO
VCB= 40V, I E= 0
Em it t er...
