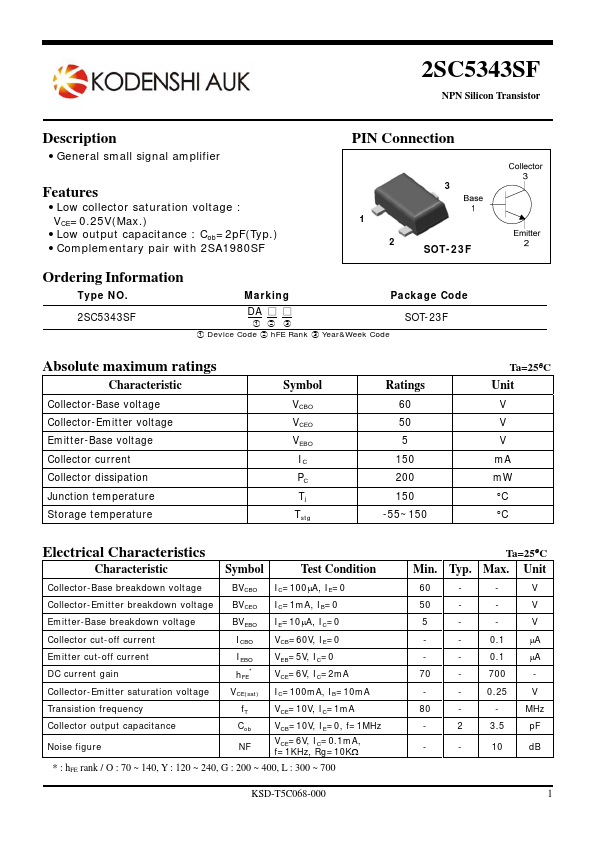

2SC5343SF
Description
- General sm all signal am plifier
PIN Connection
Features
- Low collect or sat urat ion volt age : VCE= 0.25V( Max.)
- Low out put capacit ance : Cob= 2p F( Typ.)
- plem ent ary pair wit h 2SA1980SF
1 2
SOT- 2 3 F
Ordering Information
Type NO.
2 SC5 3 4 3 SF
Marking DA ೖ ೖ
Device Code h FE Rank
Pa ck a ge Code
Year&Week Code
SOT- 23F
Absolute maximum ratings
Characteristic
Collect or- Base volt age Collect or- Em it t er volt age Em it t er- Base volt age Collect or current Collect or dissipat ion Junct ion t em perat ure Storage tem perature
Symbol
VCBO VCEO VEBO
IC PC Tj Tst g
Ratings
60 50 5 150 200 150 -55~ 150
Ta=25°C
Unit
V V V m A m W °C °C
Electrical Characteristics
Characteristic
Symbol
Test Condition
Collect or- Base breakdown volt age
BVCBO I C= 100μA, I E= 0
Collect or- Em it t er break dow n volt age BVCEO I C= 1m A, I B= 0
Em it t er- Base breakdown volt age
BVEBO I E= 10μA, I C= 0
Collect or cut- off current
I...
