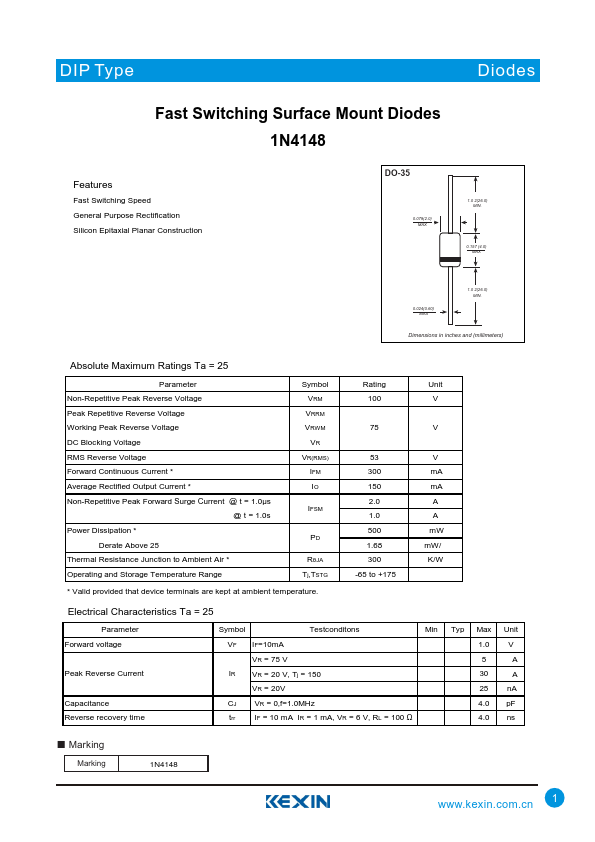

Features Fast Switching Speed General Purpose Rectification Silicon Epitaxial Planar Construction DO-35 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.157 (4.0) MAX 0.024(0.60) MAX 1.0 2(26.0) MIN. Dimensions in inches and (millimeters) Absolute Maximum Ratings Ta = 25 Parameter Non-Repetitive Peak Reverse Voltage Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current - Average Rectified Output Current - Non-Repetitive Peak Forward Surge Current @ t = 1.0ìs @ t = 1.0s Power Dissipation - Derate Above 25 Thermal Resistance Junction to Ambient Air - Operating and Storage Temperature Range Symbol VRM VRRM VRWM VR VR(RMS) IFM IO IFSM RèJA Tj,TSTG - Valid provided that device terminals are kept at ambient temperature. Rating 100 53 300 150 2.0 1.0 500 1.68 300 -65 to +175 Unit V V m A m A A A m W m W/ K/W Electrical Characteristics Ta = 25 Parameter Forward voltage Peak Reverse Current Capacitance Reverse recovery...
