1N4448WS Datasheet | Kexin Semiconductor

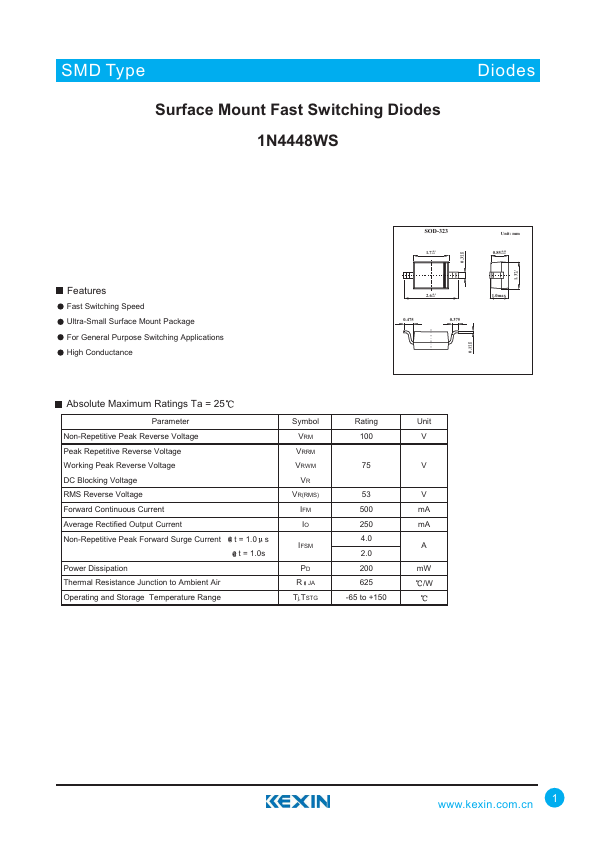

Features Fast Switching Speed Ultra-Small Surface Mount Package For General Purpose Switching Applications High Conductance SOD-323 1.7+0.1 -0.1 Unit: mm 0.85+0.05 -0.05 +0.05 0.3 -0.05 +0.1 1.3 -0.1 2.6+0.1 -0.1 1.0max +0.05 0.1 -0.02 Absolute Maximum Ratings Ta = 25 Parameter Non-Repetitive Peak Reverse Voltage Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current Average Rectified Output Current Non-Repetitive Peak Forward Surge Current Power Dissipation Thermal Resistance Junction to Ambient Air Operating and Storage Temperature Range t = 1.0 s t = 1.0s Symbol VRM VRRM VRWM VR VR(RMS) IFM IO IFSM PD R JA Tj,TSTG Rating 100 53 500 250 4.0 2.0 200 625 -65 to +150 Unit V V m A m A A m W /W .kexin..cn 1 SMD Type Diodes Electrical Characteristics Ta = 25 Parameter Symbol Testconditons Reverse Breakdown Voltage (- ) V(BR)R IR = 2.5 A IF = 5.0m A Forward Voltage (- ) IF = 10m A VF IF = 100m...
