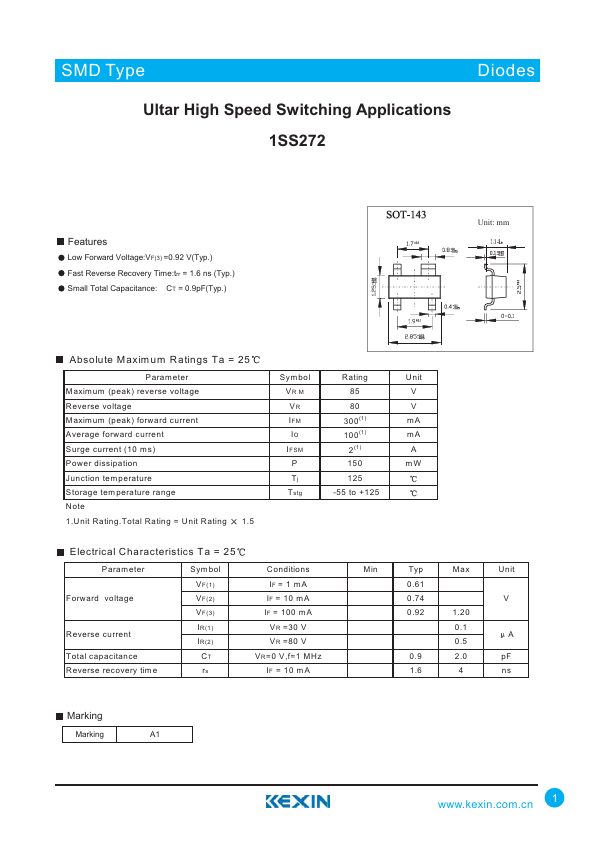

1SS272 Datasheet | Kexin Semiconductor

Features Low Forward Voltage:VF(3) =0.92 V(Typ.) Fast Reverse Recovery Time:trr = 1.6 ns (Typ.) Small Total Capacitance: CT = 0.9p F(Typ.) Unit: mm Absolute Maxim um Ratings Ta = 25 P aram eter Maxim um (peak) reverse voltage Reverse voltage Maxim um (peak) forward current Average forward current Surge current (10 ms) Power dissipation Junction tem perature Storage temperature range Note 1.Unit Rating.Total Rating = Unit Rating 1.5 Sym bol VR M VR IFM IO IFSM P Tj T stg Rating 85 80 300(1) 100(1) 2(1) 150 125 -55 to +125 Unit V V m A m A A m W Electrical Characteristics Ta = 25 P aram eter Forward voltage Reverse current Total capacitance Reverse recovery tim e Sym bol V F (1) V F (2) V F (3) IR(1) IR(2) CT rs Conditions IF = 1 m A IF = 10 m A IF = 100 m A VR =30 V VR =80 V VR=0 V,f=1 MHz IF = 10 m A M in Typ Max Unit 0.1 A 2.0 p F 4 ns Marking Marking A1 .kexin..cn...
