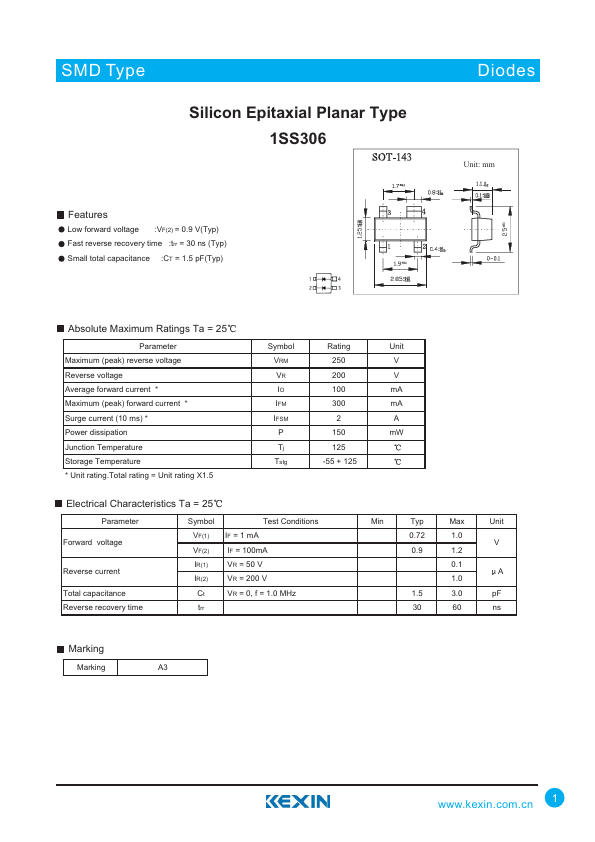

1SS306 is Silicon Epitaxial Planar Type Diodes manufactured by Kexin Semiconductor.
Features
Low forward voltage :VF(2) = 0.9 V(Typ) Fast reverse recovery time :trr = 30 ns (Typ) Small total capacitance :CT = 1.5 p F(Typ)
Diodes
Unit: mm
Absolute Maximum Ratings Ta = 25
Parameter Maximum (peak) reverse voltage Reverse voltage Average forward current
- Maximum (peak) forward current
- Surge current (10 ms)
- Power dissipation Junction Temperature Storage Temperature
- Unit rating.Total rating = Unit rating X1.5
Symbol
Rating
Unit
100 m A
300 m A
IFSM
150 m W
Tj
Tstg
-55 + 125
Electrical Characteristics Ta = 25
Parameter Forward voltage
Reverse current Total capacitance Reverse recovery time
Symbol VF(1) VF(2) IR(1) IR(2) Ct trr
Test Conditions IF = 1 m A IF = 100m A VR = 50 V VR = 200 V VR = 0, f = 1.0 MHz
Min
Typ
Max
Unit
0.1...
