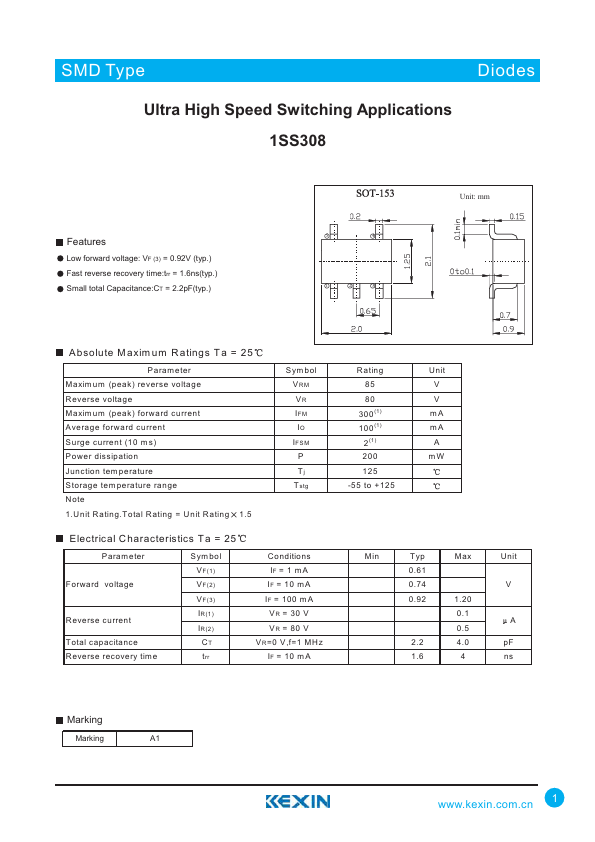

1SS308 Datasheet | Kexin Semiconductor

Features Low forward voltage: VF (3) = 0.92V (typ.) Fast reverse recovery time:trr = 1.6ns(typ.) Small total Capacitance:CT = 2.2p F(typ.) Unit: mm Absolute M axim um Ratings Ta = 25 Param eter Maxim um (peak) reverse voltage Reverse voltage Maxim um (peak) forward current Average forward current Surge current (10 m s) Power dissipation Junction tem perature Storage tem perature range Note 1.Unit Rating.Total Rating = Unit Rating 1.5 Sym bol VRM VR IFM IO IFSM P Tj T stg R a tin g 85 80 300(1) 100(1) 2(1) 200 125 -55 to +125 U n it V V m A m A A m W Electrical Characteristics Ta = 25 P aram eter Forward voltage Reverse current Total capacitance Reverse recovery tim e Sym bol V F (1) V F (2) V F (3) IR(1) IR(2) CT trr Conditions IF = 1 m A IF = 10 m A IF = 100 m A VR = 30 V VR = 80 V VR=0 V,f=1 MHz IF = 10 m A M in Typ Max Unit 0.1 A 4.0 p F 4 ns Marking Marking A1 .kexin..cn...
