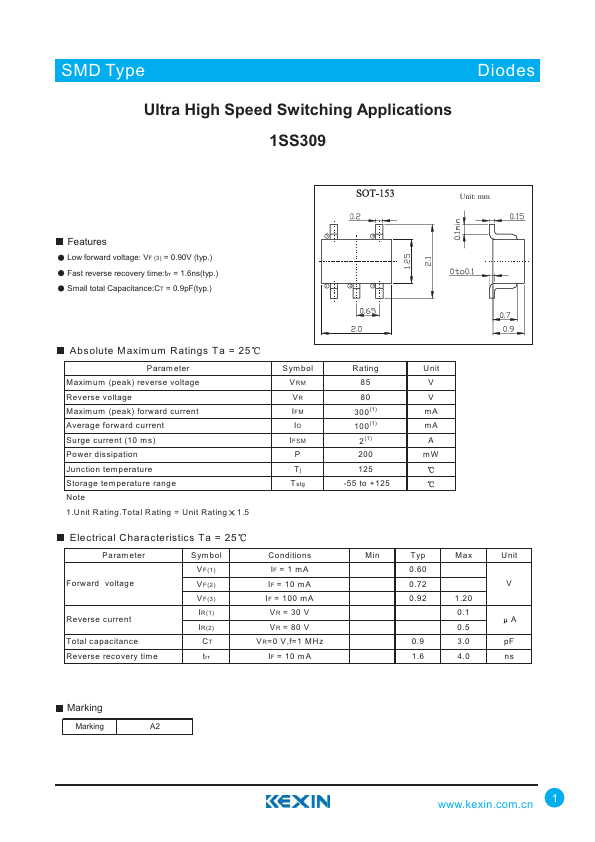

1SS309 Datasheet | Kexin Semiconductor

Features Low forward voltage: VF (3) = 0.90V (typ.) Fast reverse recovery time:trr = 1.6ns(typ.) Small total Capacitance:CT = 0.9p F(typ.) Unit: mm Absolute Maxim um Ratings Ta = 25 P aram eter Maxim um (peak) reverse voltage Reverse voltage Maxim um (peak) forward current Average forward current Surge current (10 ms) Power dissipation Junction tem perature Storage temperature range Note 1.Unit Rating.Total Rating = Unit Rating 1.5 Sym bol VRM VR IFM IO IFSM P Tj T stg Electrical Characteristics Ta = 25 P aram eter Forward voltage Reverse current Total capacitance Reverse recovery tim e Sym bol V F (1) V F (2) V F (3) IR(1) IR(2) CT trr Conditions IF = 1 m A IF = 10 m A IF = 100 m A VR = 30 V VR = 80 V VR=0 V,f=1 MHz IF = 10 m A Rating 85 80 300(1) 100(1) 2(1) 200 125 -55 to +125 M in Unit V V m A m A A m W Typ 0.60 0.72 0.92 0.9 1.6 Max 1.20 0.1 0.5 3.0 4.0 Unit V A p F ns Marking Marking A2 .kexin..cn...
