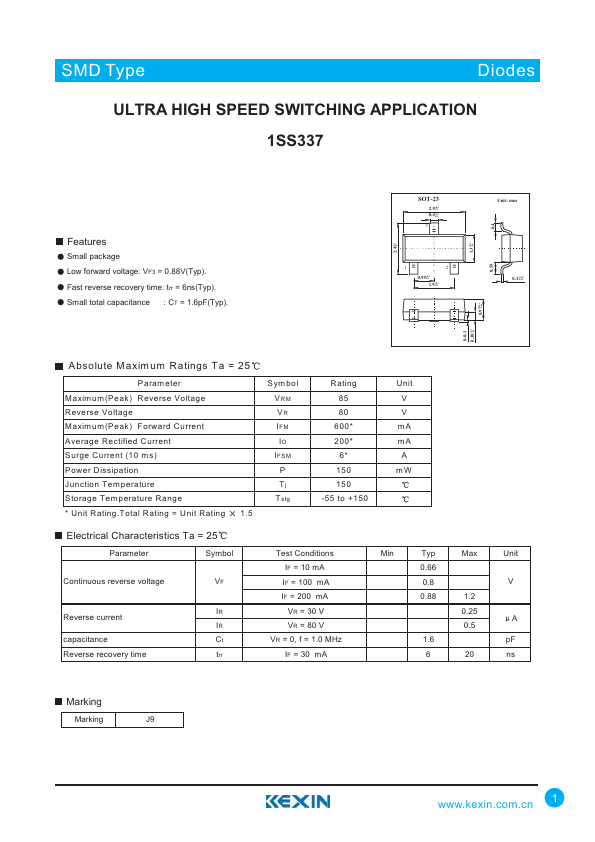

1SS337 Datasheet | Kexin Semiconductor

Features Small package Low forward voltage: VF3 = 0.88V(Typ). Fast reverse recovery time: trr = 6ns(Typ). Small total capacitance : CT = 1.6p F(Typ). +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 0.95+0.1 -0.1 1.9+0.1 -0.1 0-0.1 +0.1 0.38 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 Unit: mm 0.1+0.05 -0.01 1.Base 2.Emitter 3.collector Absolute Maxim um Ratings Ta = 25 Param eter Maxim um (Peak) Reverse Voltage Reverse Voltage Maxim um (Peak) Forward Current Average Rectified Current Surge Current (10 m s) Power Dissipation Junction Tem perature Storage Tem perature Range - Unit Rating.Total Rating = Unit Rating 1.5 Sym bol VRM VR IFM IO IFSM P Tj T stg Rating 85 80 600- 200- 6- 150 150 -55 to +150 Unit V V m A m A A m W Electrical Characteristics Ta = 25 Parameter Symbol Continuous reverse voltage IR Reverse current IR capacitance Ct Reverse recovery time trr Test Conditions IF = 10 m A IF = 100 m A IF = 200 m A VR = 30 V VR = 80 V VR = 0, f = 1.0 MHz IF = 30 m...
