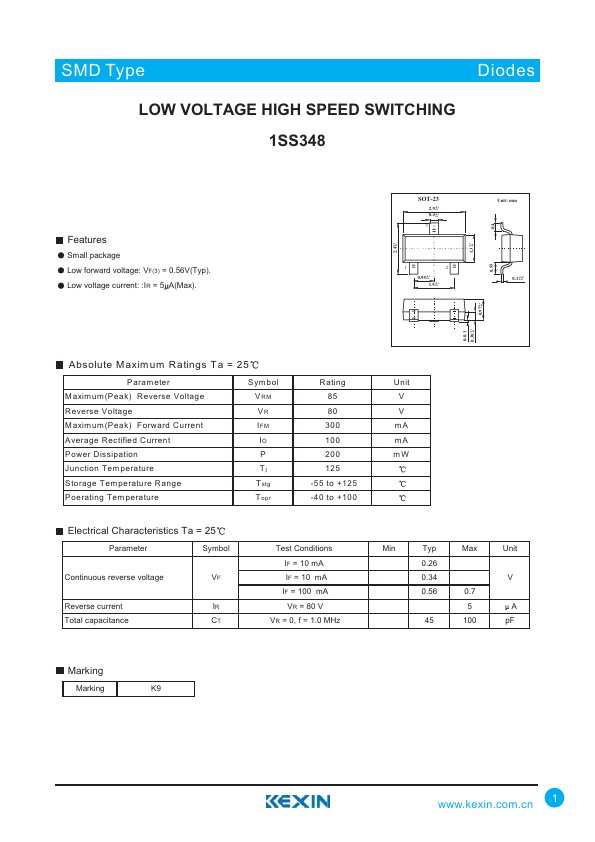

1SS348
1SS348 is LOW VOLTAGE HIGH SPEED SWITCHING DIODE manufactured by Kexin Semiconductor.
Features
Small package Low forward voltage: VF(3) = 0.56V(Typ). Low voltage current: :IR = 5 A(Max).
+0.1 2.4 -0.1
SOT-23
2.9+0.1 -0.1
0.4+0.1 -0.1
0.95+0.1 -0.1 1.9+0.1 -0.1
+0.1 1.3 -0.1
Unit: mm 0.1+0.05
-0.01
+0.1 0.97 -0.1
Absolute Maxim um Ratings Ta = 25
P aram eter Maxim um (Peak) Reverse Voltage Reverse Voltage Maxim um (Peak) Forward Current Average Rectified Current Power Dissipation Junction Tem perature Storage Temperature Range Poerating Tem perature
Sym bol VRM VR IFM IO P Tj T stg Topr
Rating 85 80 300 100 200 125
-55 to +125 -40 to +100
Unit V V m A m A m W
0-0.1 +0.1 0.38
-0.1
1.Base 2.Emitter 3.collector
Electrical Characteristics Ta = 25
Parameter
Symbol
Continuous reverse voltage
Reverse current
Total capacitance
Test Conditions IF = 10 m A IF = 10 m A IF = 100 m A VR = 80 V
VR = 0, f = 1.0 MHz
Min
Typ
Max
Unit...
