1SS349 is Schottky Diodes manufactured by Kexin Semiconductor.
SMD Type

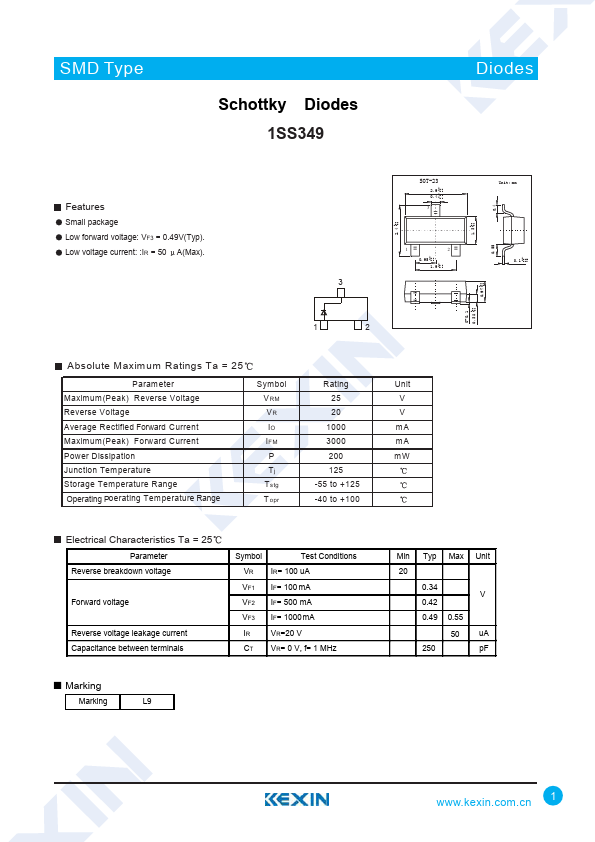

Schottky Diodes 1SS349
Diodes
Features
Small package Low forward voltage: VF3 = 0.49V(Typ). Low voltage current: :IR = 50 A(Max).
SOT-23
2.9 +0.1 -0.1
0.4 +0.1 -0.1
+0.1 2.4 -0.1
0.95 +0.1 -0.1 1.9 +0.1 -0.1
0-0.1 +0.1 0.38
-0.1
+0.1 1.3 -0.1
+0.1 0.97 -0.1
Unit: mm
0.1 +0.05 -0.01
1.Base 2.Emitter 3.collector
Absolute Maxim um Ratings Ta = 25
P aram eter Maximum(Peak) Reverse Voltage Reverse Voltage Average Rectified Forward Current Maximum(Peak) Forward Current Power Dissipation Junction Temperature Storage Temperature Range Operating Poerating Tem perature Range
Symbol VRM VR IO IFM P Tj Tstg T opr
Rating 25 20
1000 3000 200 125 -55 to +125 -40 to +100
Unit V V m A m A m W
Electrical Characteristics Ta = 25
Parameter Reverse breakdown voltage
Forward voltage
Reverse voltage leakage current Capacitance between terminals
Symbol
Test Conditions
VR IR= 100 u...
