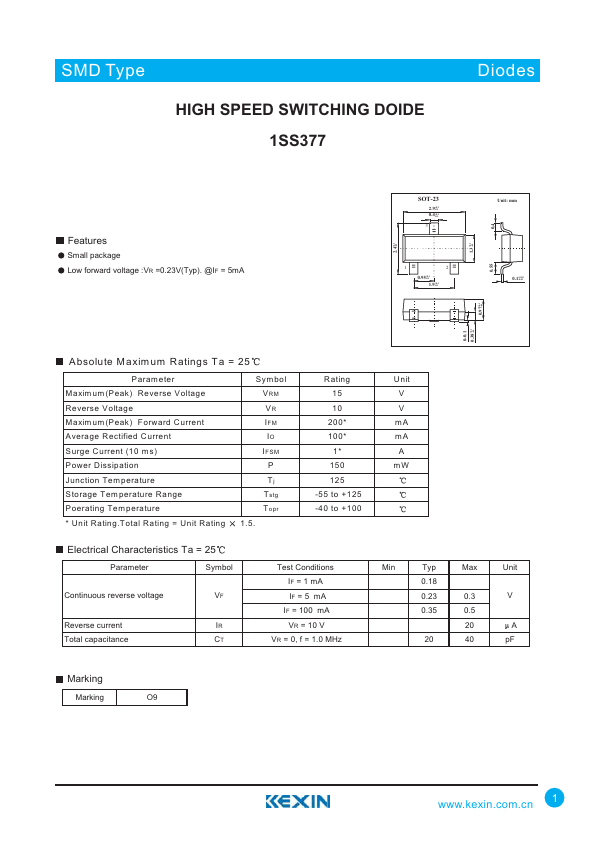

1SS377
1SS377 is HIGH SPEED SWITCHING DIODE manufactured by Kexin Semiconductor.
Features
Small package Low forward voltage :VR =0.23V(Typ). @IF = 5m A
+0.1 2.4 -0.1
SOT-23
2.9+0.1 -0.1
0.4+0.1 -0.1
0.95+0.1 -0.1 1.9+0.1 -0.1
+0.1 1.3 -0.1
Unit: mm 0.1+0.05
-0.01
+0.1 0.97 -0.1
Absolute Maxim um Ratings Ta = 25
P aram eter Maxim um (Peak) Reverse Voltage Reverse Voltage Maxim um (Peak) Forward Current Average Rectified Current Surge Current (10 ms) Power Dissipation Junction Tem perature Storage Temperature Range Poerating Tem perature
- Unit Rating.Total Rating = Unit Rating
Sym bol VRM VR IFM IO IFSM P Tj T stg Topr
1.5.
Rating 15 10
200- 100-
1- 150 125 -55 to +125 -40 to +100
Unit V V m A m A A m W
Electrical Characteristics Ta = 25
Parameter
Symbol
Continuous reverse voltage
Reverse current
Total capacitance
Test Conditions IF = 1 m A IF = 5 m A
IF = 100 m A VR = 10 V
VR = 0, f = 1.0...
