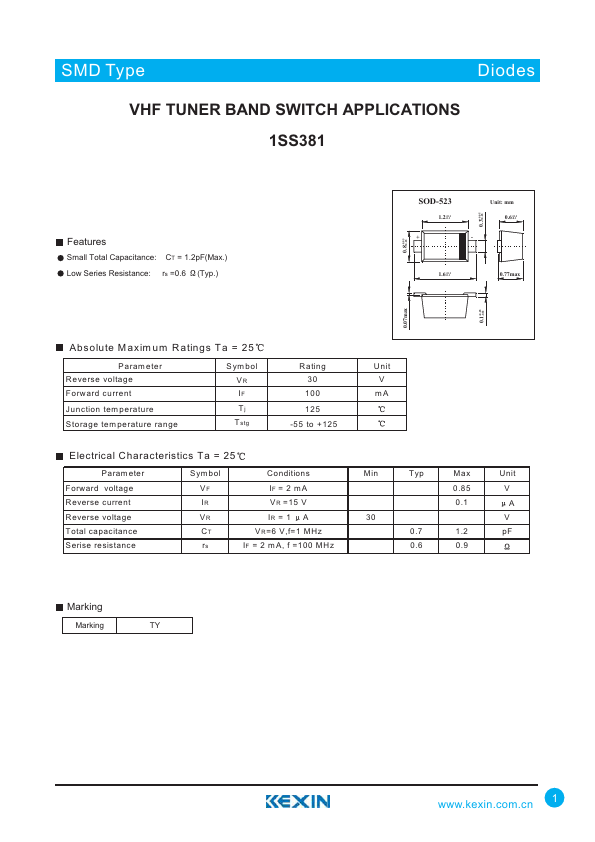

1SS381
Features
Small Total Capacitance: CT = 1.2p F(Max.) Low Series Resistance: rs =0.6 (Typ.)
+0.05 0.8 -0.05
SOD-523
1.2+0.1 -0.1
+
+0.05 0.3 -0.05
Unit: mm 0.6+0.1
-0.1
- 1.6+0.1 -0.1
0.77max
+0.05 0.1 -0.02
0.07max
Absolute M axim um Ratings Ta = 25
Param eter Reverse voltage Forward current Junction tem perature Storage tem perature range
Sym bol VR IF Tj T stg
R a tin g 30 100 125
-55 to +125
U n it V m A
Electrical Characteristics Ta = 25
P aram eter Forward voltage Reverse current Reverse voltage Total capacitance Serise resistance
Sym bol
Conditions
M in
Typ
Max
Unit
IF = 2 m A
VR =15 V
IR = 1 A
VR=6 V,f=1 MHz
1.2 p F...
