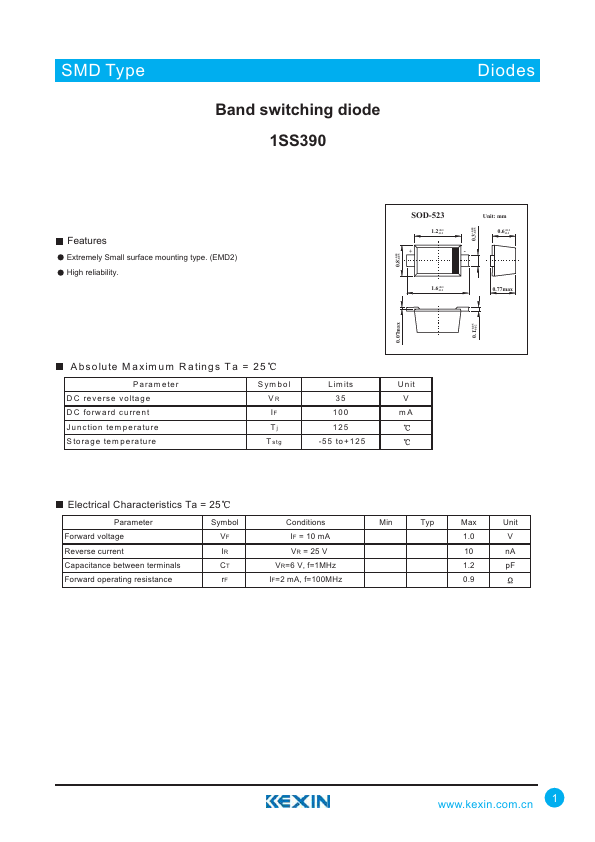

1SS390
Features
Extremely Small surface mounting type. (EMD2) High reliability.
+0.05 0.8 -0.05
SOD-523
1.2+0.1 -0.1
+
+0.05 0.3 -0.05
Unit: mm 0.6+0.1
-0.1
- 1.6+0.1 -0.1
0.77max
+0.05 0.1 -0.02
0.07max
A bsolute M axim um R atings Ta = 25
Param eter D C reverse voltage D C forward current Junction tem perature Storage tem perature
S ym bol VR IF Tj T stg
Lim its 35 100 125
-55 to+125
U nit V m A
Electrical Characteristics Ta = 25
Parameter Forward voltage Reverse current Capacitance between terminals Forward operating resistance
Symbol VF IR CT r F
Conditions IF = 10 m A VR = 25 V
VR=6 V, f=1MHz IF=2 m A, f=100MHz
Min
Typ
Max
Unit
10 n A
1.2 p F
