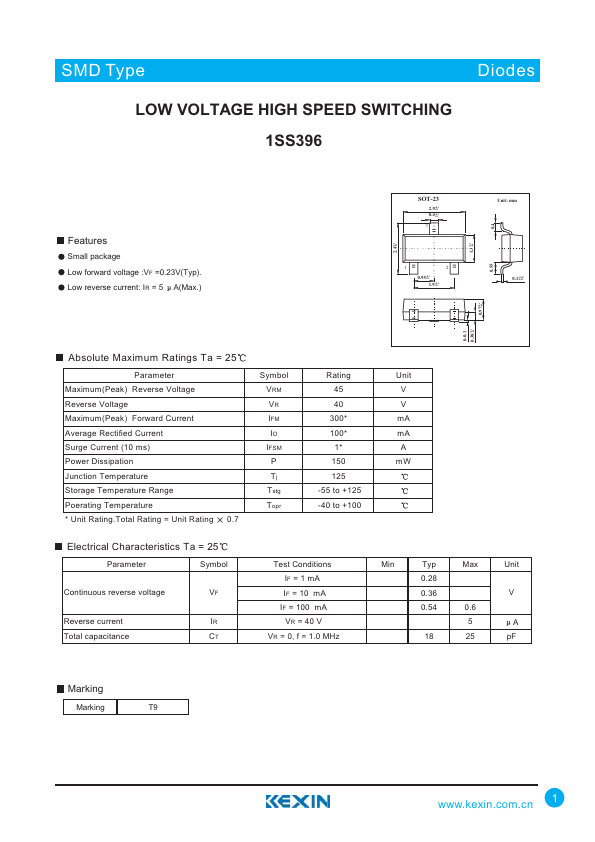

1SS396 Datasheet PDF

FEATURES

Small package Low forward voltage :VF =0.23V(Typ). Low reverse current: IR = 5 A(Max.) +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1+0.05 -0.01 +0.1 0.97 -0.1

ABSOLUTE MAXIMUM RATINGS

Ta = 25 Parameter Symbol Rating Unit Maximum(Peak) Reverse Voltage VRM 45 V Reverse Voltage VR 40 V Maximum(Peak) Forward Current IFM 300* mA Average Rectified Current IO 100* mA Surge Current (10 ms) IFSM 1* A Power Dissipation P 150 mW Junction Temperature Tj 125 Storage Temperature Range Tstg -55 to +125 Poerating Temperature Topr -40 to +100 * Unit Rating.Total Rating = Unit Rating 0.7

ELECTRICAL CHARACTERISTICS

Ta = 25 Parameter Symbol Continuous reverse voltage VF Reverse current IR Total capacitance CT Test Conditions IF = 1 mA IF = 10 mA IF = 100 mA VR = 40 V VR = 0, f = 1.0 MHz Min Typ 0.28 0.36 0.54 18 0-0.1 +0.1 0.38 -0.1 1.Base 2.Emitter 3.collector Max Unit V 0.6 5 A 25 pF Marking Marking T9 1
