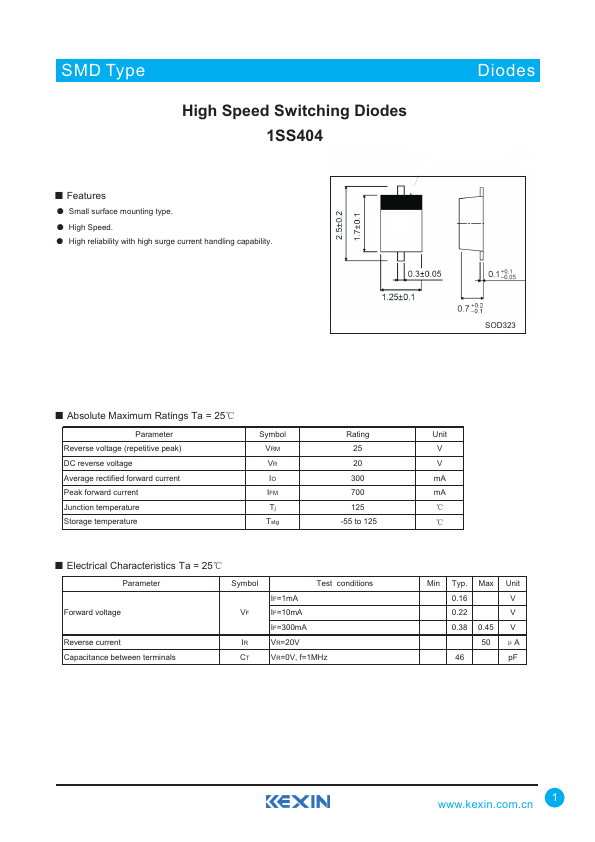

1SS404 Datasheet PDF

FEATURES

● Small surface mounting type.
● High Speed.
● High reliability with high surge current handling capability. Diodes SOD323
●

ABSOLUTE MAXIMUM RATINGS

Ta = 25℃ Parameter Reverse voltage (repetitive peak) DC reverse voltage Average rectified forward current Peak forward current Junction temperature Storage temperature Symbol VRM VR IO IFM Tj Tstg Rating 25 20 300 700 125 -55 to 125
●

ELECTRICAL CHARACTERISTICS

Ta = 25℃ Parameter Forward voltage Reverse current Capacitance between terminals Symbol VF IR CT Test conditions IF=1mA IF=10mA IF=300mA VR=20V VR=0V, f=1MHz Unit V V mA mA ℃ ℃ Min Typ. Max Unit 0.16 V 0.22 V 0.38 0.45 V 50 μA 46 pF 1
