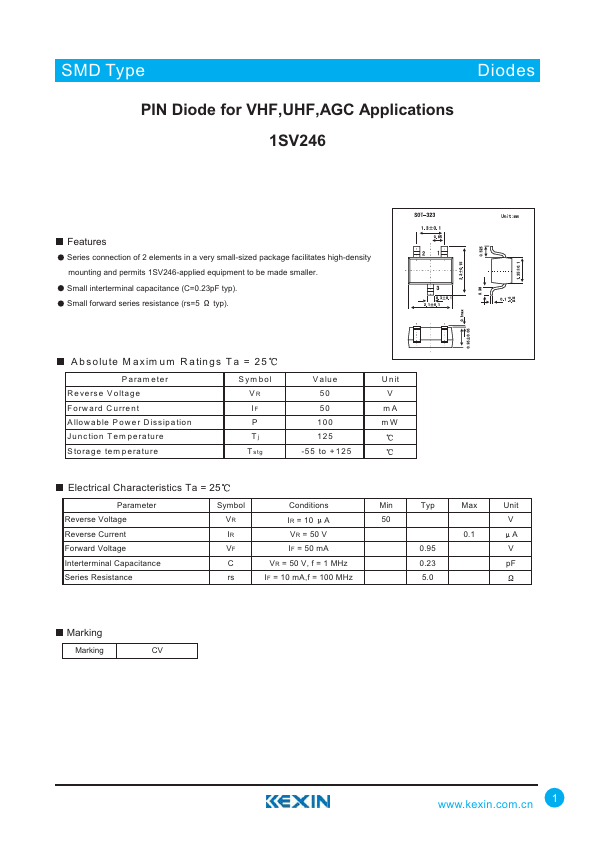

1SV246 Datasheet | Kexin Semiconductor

Features Series connection of 2 elements in a very small-sized package facilitates high-density mounting and permits 1SV246-applied equipment to be made smaller. Small interterminal capacitance (C=0.23p F typ). Small forward series resistance (rs=5 typ). A bsolute M axim um R atings T a = 25 Param eter R everse V oltage Forward Current A llowable P ower D issipation Junction Tem perature Storage tem perature Sym bol VR IF P Tj T stg V alue 50 50 100 125 -55 to +125 U nit V m A m W Electrical Characteristics Ta = 25 Parameter Reverse Voltage Reverse Current Forward Voltage Interterminal Capacitance Series Resistance Symbol Conditions Min Typ Max Unit IR = 10 A VR = 50 V IF = 50 m A VR = 50 V, f = 1 MHz 0.23 p F rs IF = 10 m A,f = 100 MHz Marking Marking .kexin..cn...
