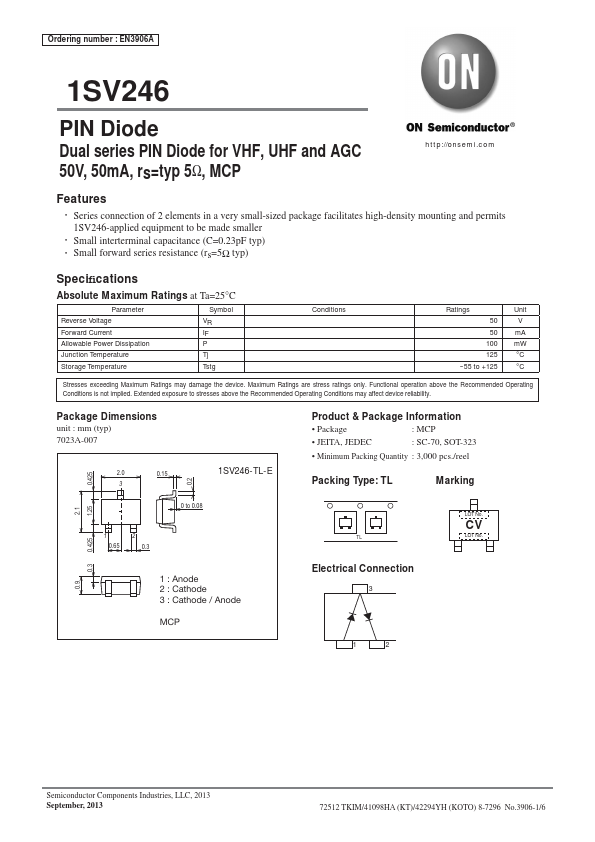

1SV246 is PIN Diode for VHF manufactured by onsemi.
Features
- Series connection of 2 elements in a very small-sized package facilitates high-density mounting and permits 1SV246-applied equipment to be made smaller
- Small interterminal capacitance (C=0.23p F typ)
- Small forward series resistance (rs=5Ω typ)

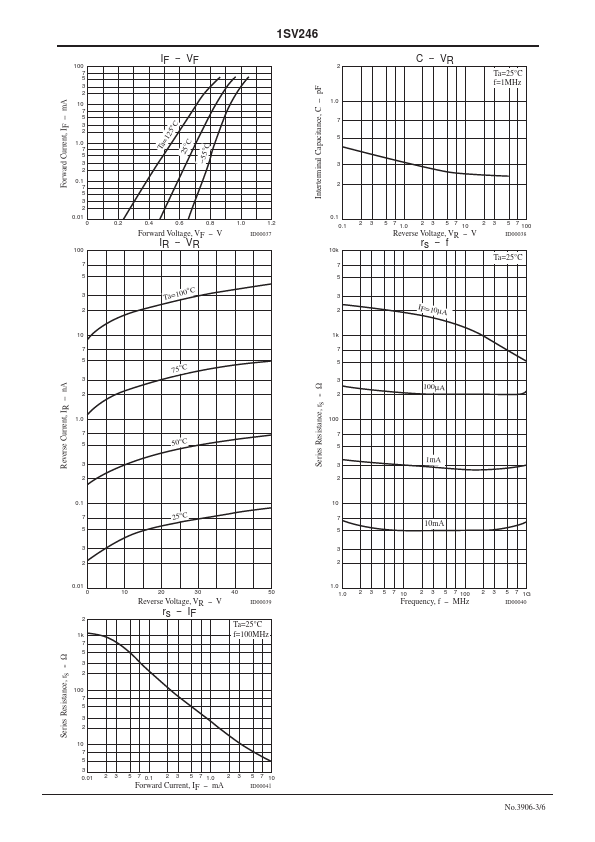

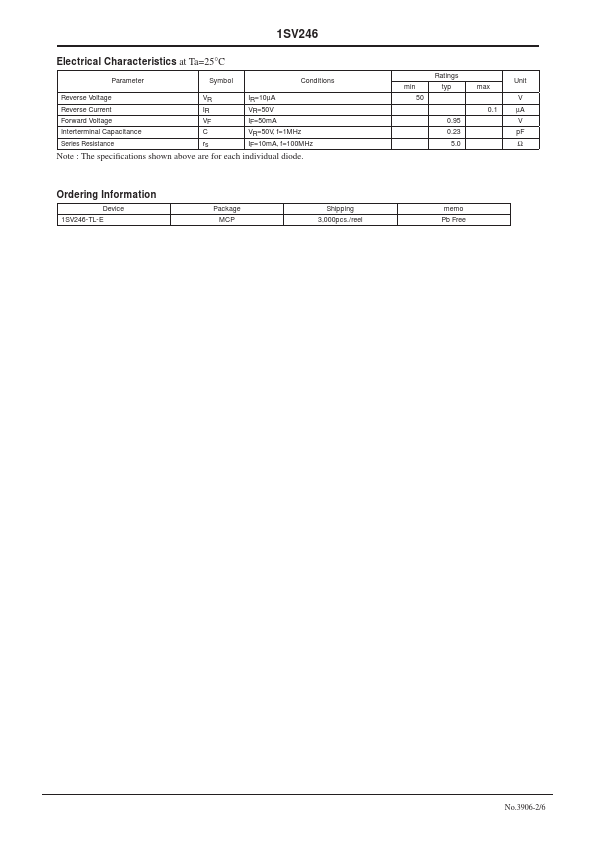

Specifications
Absolute Maximum Ratings at Ta=25°C
Parameter Reverse Voltage Forward Current Allowable Power Dissipation Junction Temperature Storage Temperature
Symbol VR IF P Tj Tstg
Conditions
Ratings
Unit
50 m A
100 m W
°C
--55 to +125
°C
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Remended Operating Conditions is not implied. Extended exposure to stresses above the Remended Operating Conditions may affect device reliability.
Package Dimensions unit : mm (typ) 7023A-007
1SV246-TL-E
Product & Package Information
- Package
: MCP
- JEITA, JEDEC
: SC-70, SOT-323
- Minimum Packing Quantity : 3,000 pcs./reel
Packing Type: TL
Marking
0.3 0.425
0 to...
