2KK5106 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 650V.
  • ID = 3A.
  • RDS(ON) < 1.4ʃ @ VGS = 10V,ID = 3.0A.
  • Fast switching capability.
  • Avalanche energy specified.
  • Improved dv/dt capability, high ruggedness TO-252 D MOSFET 23 1 G S 1. Gate (G) 2. Drain (D) 3. Source (S).
  • Absolute Maximum Ratings (TC = 25℃, unless otherwise specified) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current TC = 25℃ TC = 100℃ Pulsed Drain Current (Note 2) Avalanche Energy, Single Pulsed (No.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2KK904 N-Channel Silicon Power MOS FET Fuji Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
2KK5100DFN N-Channel MOSFET
2KK5102DFN N-Channel MOSFET
2KK5103 N-Channel MOSFET
2KK5113 N-Channel MOSFET
2KK5115DFN N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

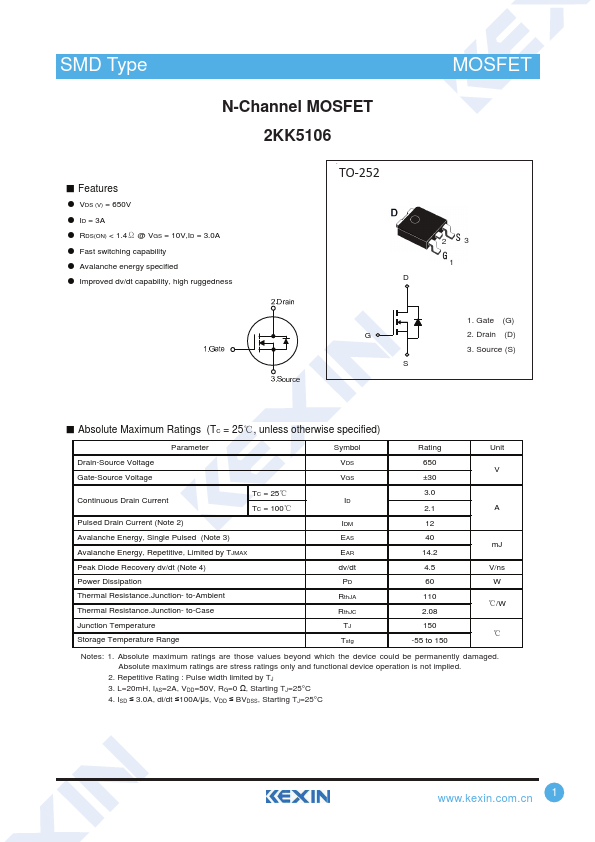

SMD Type N-Channel MOSFET 2KK5106 ■ Features ● VDS (V) = 650V ● ID = 3A ● RDS(ON) < 1.4ʃ @ VGS = 10V,ID = 3.0A ● Fast switching capability ● Avalanche energy specified ● Improved dv/dt capability, high ruggedness TO-252 D MOSFET 23 1 G S 1. Gate (G) 2. Drain (D) 3. Source (S) ■ Absolute Maximum Ratings (TC = 25℃, unless otherwise specified) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current TC = 25℃ TC = 100℃ Pulsed Drain Current (Note 2) Avalanche Energy, Single Pulsed (Note 3) Avalanche Energy, Repetitive, Limited by TJMAX Peak Diode Recovery dv/dt (Note 4) Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.
