2PB710A - PNP General Purpose Transistor

Key Features

  • High current (max. 500 mA) Low voltage (max. 50 V). +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Symbol Rating Unit Collector-base voltage VCBO -60 V Collector-emitter voltage VCEO -50 V Emitter-base voltage VEBO -5 V Collector current (DC) IC -500 mA Peak collector current ICM -1 A Peak base current IBM -200 mA Total power dissipation Tamb 25 ;.
  • Ptot 250 mW Storage temperatu.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2PB710A PNP general purpose transistor NXP
2PB710ASL-Q 500mA PNP general-purpose transistor nexperia
2PB709A PNP general purpose transistor NXP
2PB709ARL PNP general-purpose transistors nexperia
2PB709ART 100mA PNP general-purpose transistor NXP

Other Datasheets by Kexin Semiconductor

Part Number Description
2PB709A PNP General Purpose Transistor
2PB709AW PNP Transistor
2PB1219A PNP General Purpose Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

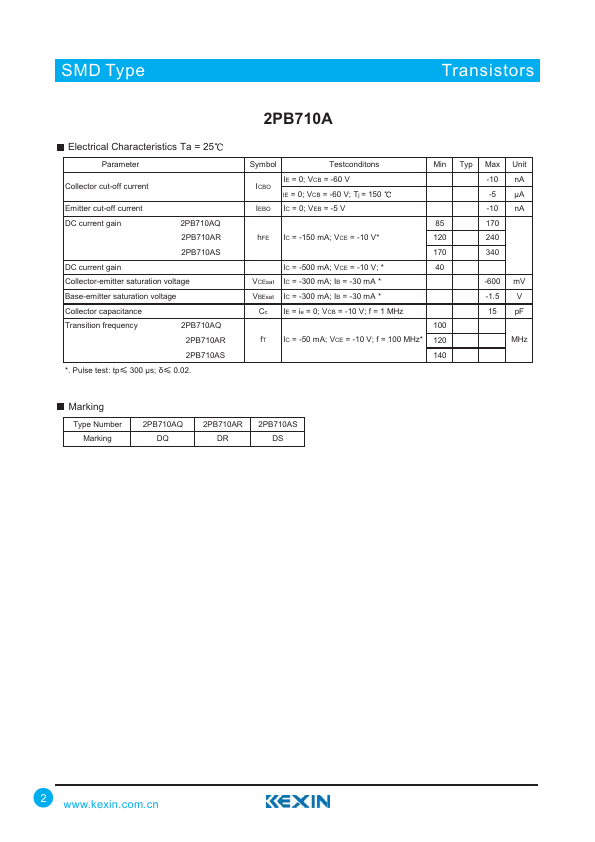

SMD Type TransistIoCrs PNP General Purpose Transistor 2PB710A Features High current (max. 500 mA) Low voltage (max. 50 V). +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Symbol Rating Unit Collector-base voltage VCBO -60 V Collector-emitter voltage VCEO -50 V Emitter-base voltage VEBO -5 V Collector current (DC) IC -500 mA Peak collector current ICM -1 A Peak base current IBM -200 mA Total power dissipation Tamb 25 ; * Ptot 250 mW Storage temperature Tstg -65 to +150 Junction temperature Tj 150 Operating ambient temperature Tamb -65 to +150 Thermal resistance from junction to ambient * Rth j-a 500 K/W * Transistor mounted on an FR4 printed-circuit board. 0-0.
