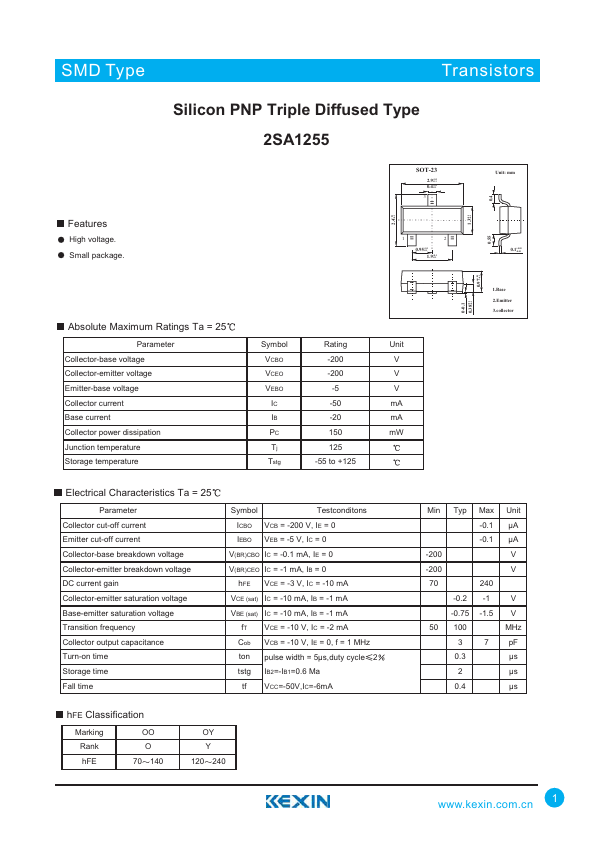

2SA1255 Datasheet Silicon PNP Triple Diffused Type Transistors

Manufacturer: Kexin Semiconductor

Overview: SMD Type Transistors.

Key Features

  • High voltage. Small package. Silicon PNP Triple Diffused Type 2SA1255 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 +0.1 2.4 -0.1 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1+0.05 -0.01 +0.1 0.97 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature Symbol Rating Unit VCBO -200 V VCEO -200 V VEBO -5.
