2SA1730 - PNP Transistors

Key Features

  • s.
  • Large current capacity.
  • Low collector-to-emitter saturation voltage.
  • Fast switching speed.
  • Small-sized package. 1.70 0.1 0.42 0.1 0.46 0.1 1.Base 2.Collector 3.Emitter.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Symbol VCBO VCEO VEBO Rating -50 -40 -5 Collector Current - Continuous IC -3 Collector Current -Pulse Collector Power Dissipation (Note.1) Junction Temperature ICp -6.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA1730 PNP Epitaxial Planar Silicon Transistors Sanyo Semicon Device
2SA1731 PNP Epitaxial Planar Silicon Transistors Sanyo Semicon Device
2SA1732 PNP Epitaxial Planar Silicon Transistors Sanyo Semicon Device
2SA1734 Silicon PNP Triple Epitaxial Type Transistor Toshiba Semiconductor
2SA1735 Silicon PNP Epitaxial Type Transistor Toshiba Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SA1734 PNP Transistors
2SA1735 PNP Transistors
2SA1736 PNP Transistors
2SA1736-HF PNP Transistors
2SA1729 PNP Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

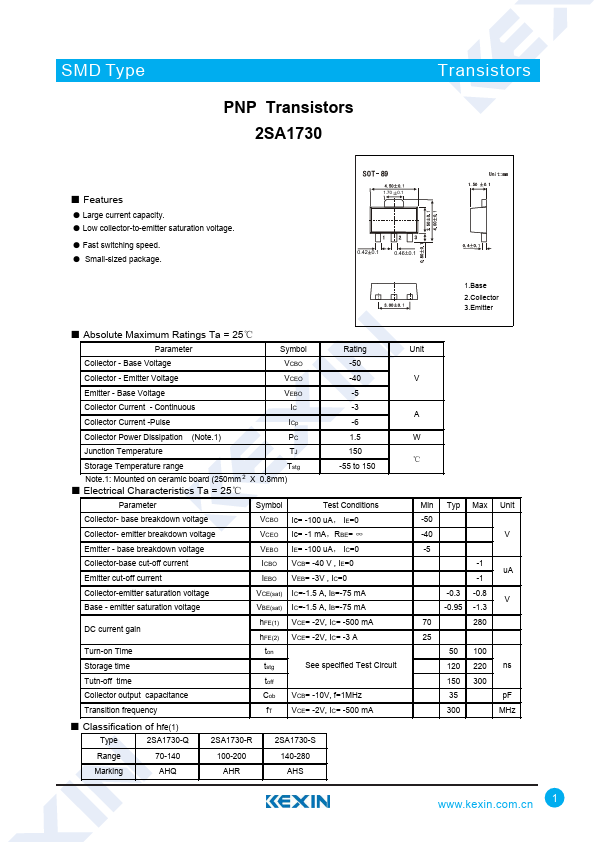

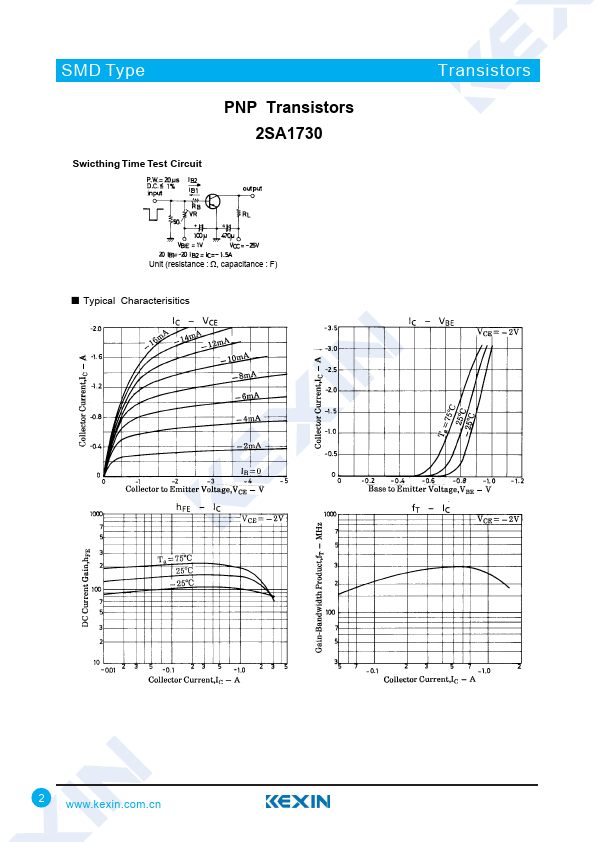

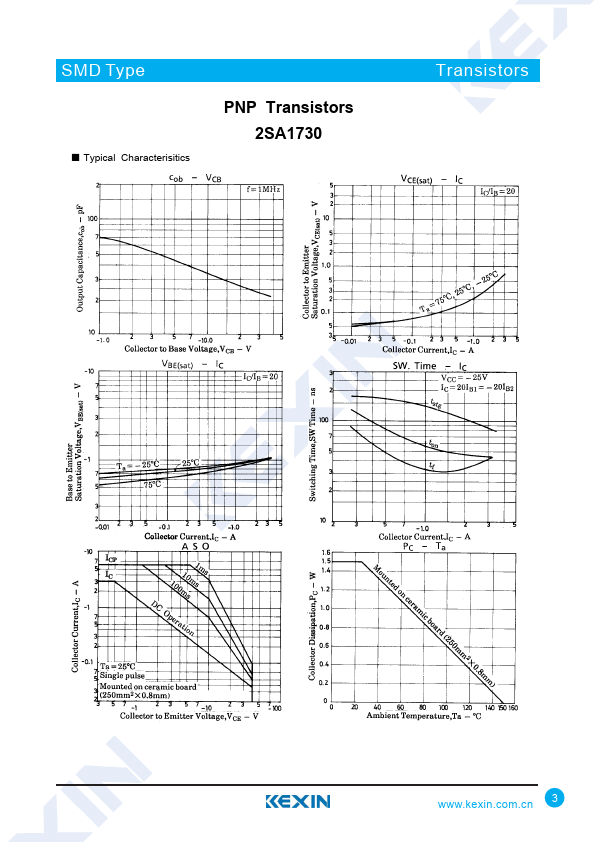

SMD Type PNP Transistors 2SA1730 Transistors ■ Features ● Large current capacity. ● Low collector-to-emitter saturation voltage. ● Fast switching speed. ● Small-sized package. 1.70 0.1 0.42 0.1 0.46 0.1 1.Base 2.Collector 3.Emitter ■ Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Symbol VCBO VCEO VEBO Rating -50 -40 -5 Collector Current - Continuous IC -3 Collector Current -Pulse Collector Power Dissipation (Note.1) Junction Temperature ICp -6 PC 1.5 TJ 150 Storage Temperature range Tstg Note.1: Mounted on ceramic board (250mm 2 X 0.
