2SA1735 - PNP Transistors

Key Features

  • s.
  • Low saturation voltage.
  • High speed switching time.
  • Small flat package.
  • PC = 1.0 to 2.0 W (mounted on a ceramic substrate).
  • Complementary to 2SC4540 1.70 0.1 0.42 0.1 0.46 0.1 1.Base 2.Collector 3.Emitter.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Collector - Base Voltage VCBO -60 Collector - Emitter Voltage VCEO -50 Emitter - Base Voltage VEBO -6 Collector Current - Continuous IC -1 BaseCurrent IB -0.2 Collector Power Dissi.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA1735 Silicon PNP Epitaxial Type Transistor Toshiba Semiconductor
2SA1730 PNP Epitaxial Planar Silicon Transistors Sanyo Semicon Device
2SA1731 PNP Epitaxial Planar Silicon Transistors Sanyo Semicon Device
2SA1732 PNP Epitaxial Planar Silicon Transistors Sanyo Semicon Device
2SA1734 Silicon PNP Triple Epitaxial Type Transistor Toshiba Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SA1730 PNP Transistors
2SA1734 PNP Transistors
2SA1736 PNP Transistors
2SA1736-HF PNP Transistors
2SA1729 PNP Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

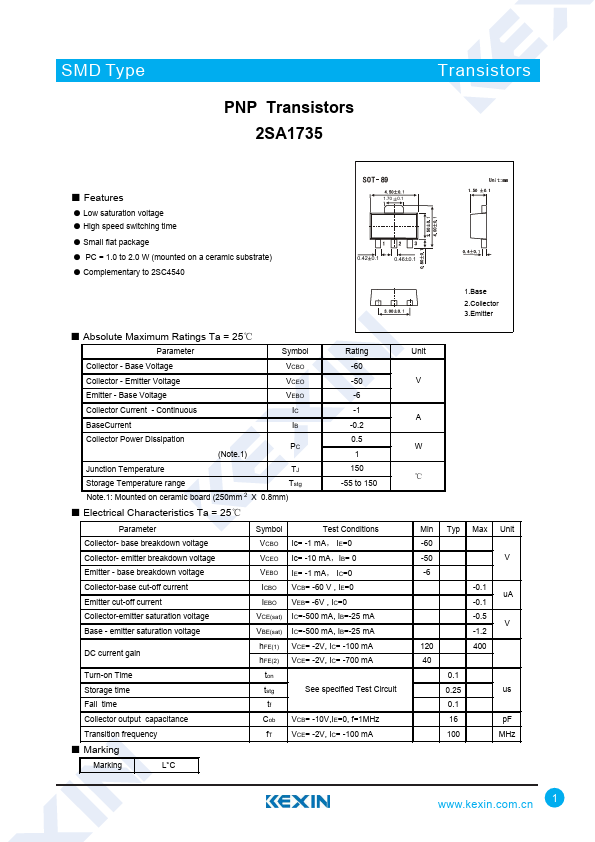

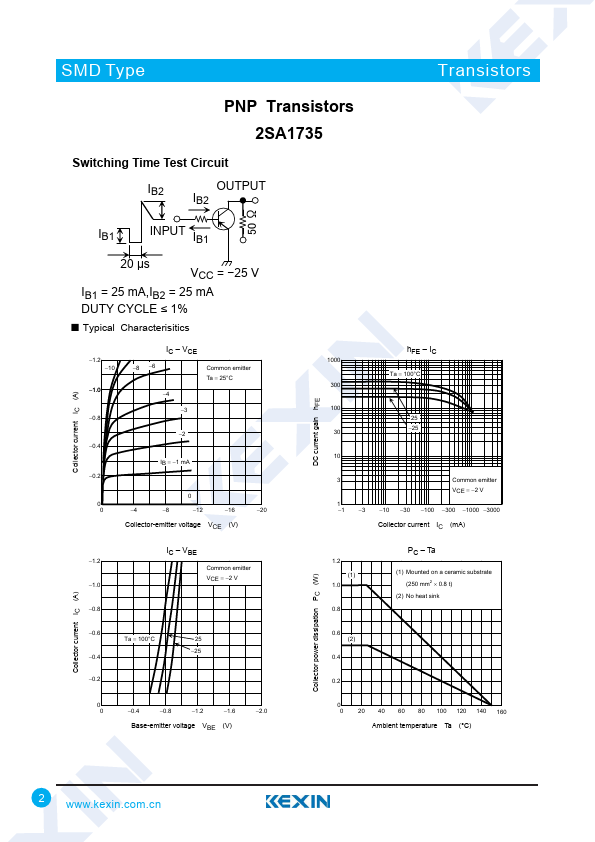

SMD Type PNP Transistors 2SA1735 Transistors ■ Features ● Low saturation voltage ● High speed switching time ● Small flat package ● PC = 1.0 to 2.0 W (mounted on a ceramic substrate) ● Complementary to 2SC4540 1.70 0.1 0.42 0.1 0.46 0.1 1.Base 2.Collector 3.Emitter ■ Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Collector - Base Voltage VCBO -60 Collector - Emitter Voltage VCEO -50 Emitter - Base Voltage VEBO -6 Collector Current - Continuous IC -1 BaseCurrent IB -0.2 Collector Power Dissipation 0.5 PC (Note.1) 1 Junction Temperature TJ 150 Storage Temperature range Tstg Note.1: Mounted on ceramic board (250mm 2 X 0.
