2SA1773 Datasheet PNP Epitaxial Planar Silicon Transistor

Manufacturer: Kexin Semiconductor

Overview: SMD Type Transistors PNP Epitaxial Planar Silicon Transistor.

Datasheet Details

Part number	2SA1773
Manufacturer	Kexin Semiconductor
File Size	40.03 KB
Description	PNP Epitaxial Planar Silicon Transistor
Datasheet	2SA1773-Kexin.pdf

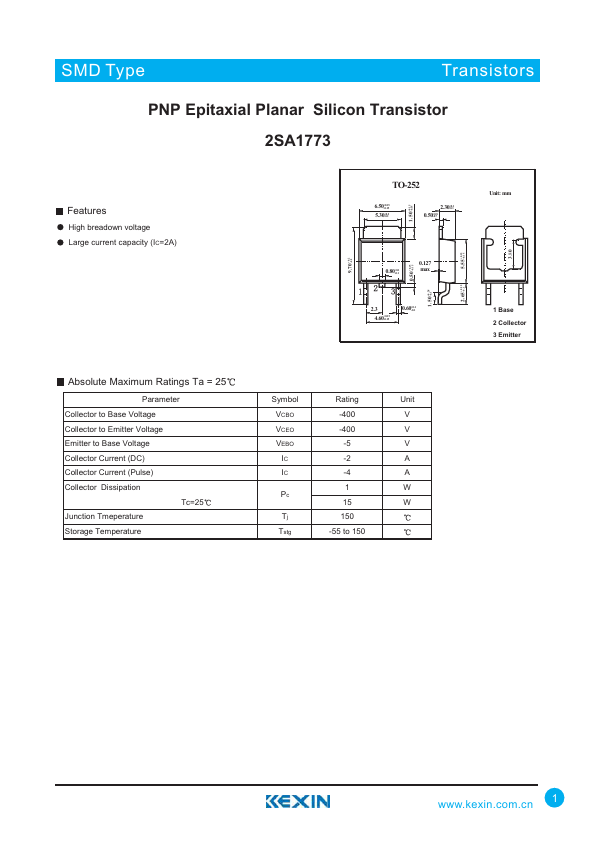

High breadown voltage Large current capacity (IC=2A) + 9.70 0.2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm + 1.50 0.15 -0.15 3.80 + 5.55 0.15 -0.15 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 + 0.15 0 .5 0 -0.15 + 0.28 1 .5 0 -0.1 + 0.25 2 .6 5 -0.1 1 Base 2 Collector 3 Emitter Absolute Maximum Ratings Ta = 25 Parameter Collector to Base Voltage Collector to Emitter Voltage Emitter to Base Voltage Collector Current (DC) Collector.
