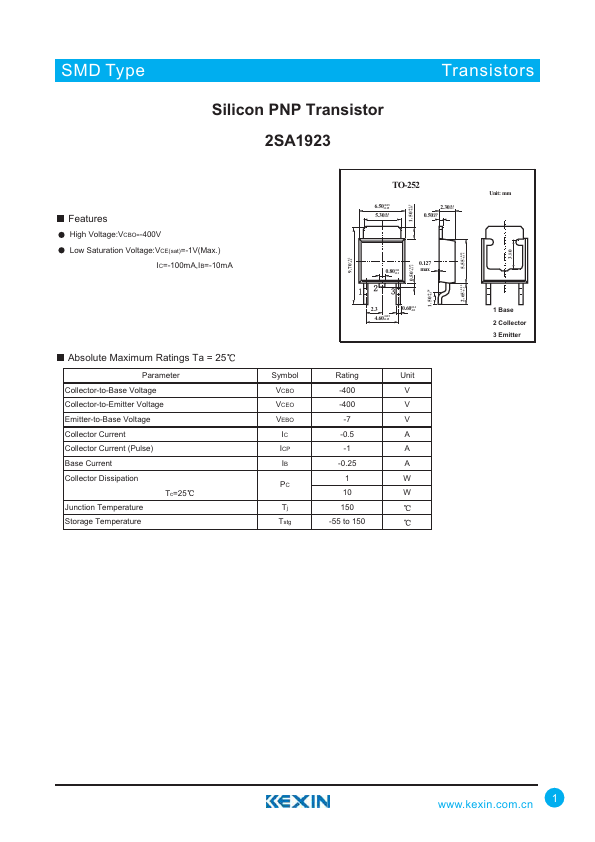

2SA1923 Datasheet Silicon PNP Transistor

Manufacturer: Kexin Semiconductor

Overview: SMD Type Silicon PNP Transistor 2SA1923 Transistors.

Key Features

  • High Voltage:VCBO=-400V Low Saturation Voltage:VCE(sat)=-1V(Max. ) IC=-100mA,IB=-10mA Absolute Maximum Ratings Ta = 25 Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Base Current Collector Dissipation Tc=25 Junction Temperature Storage Temperature TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm + 1.50 0.15 -0.15 3.80 + 5.55 0.15 -0.15 + 9.70 0.2 -0.2 0.80+0.1 -0.1 0.127 max 2.
