2SB1202 - PNP Transistors

Key Features

  • s.
  • Low collector-to-emitter saturation voltage.
  • Fast switching speed.
  • Large current capacity and wide ASO.
  • Complementary to 2SD1802 + 9.70 0.2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30 +0.1 -0.1 0.50 +0.8 -0.7 + 0.15 1 .5 0 -0.15 0.80+0.1 -0.1 0.127 m ax + 0.15 5 .5 5 -0.15 3.80 Unit: mm +0 2.65 .25 -0.1 +0 0.50 .15 -0.15 +0 1.50 .28 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 1 Base 2 Collector 3 Emitter Parameter.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB1202 PNP/NPN Epitaxial Planar Silicon Transistors Sanyo Semicon Device
2SB1202 Bipolar Transistor ON Semiconductor
2SB1202 PNP Epitaxial Planar Silicon Transistors GME
2SB1202 Silicon PNP Power Transistor Inchange Semiconductor
2SB1202 PNP PLANAR TRANSISTOR UTC

Other Datasheets by Kexin Semiconductor

Part Number Description
2SB1201 Transistors
2SB1203 PNP Transistors
2SB1204 PNP Transistors
2SB1205 PNP Transistors
2SB1215 PNP Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

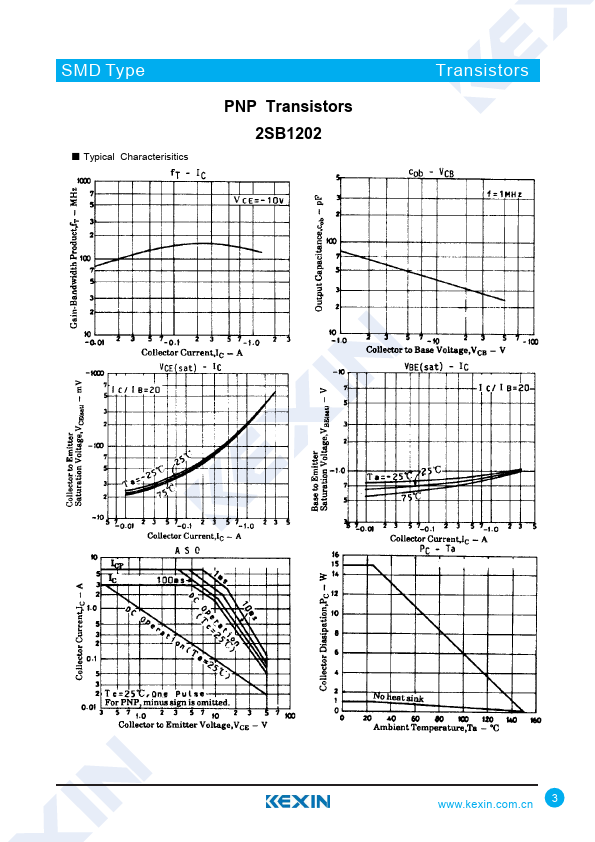

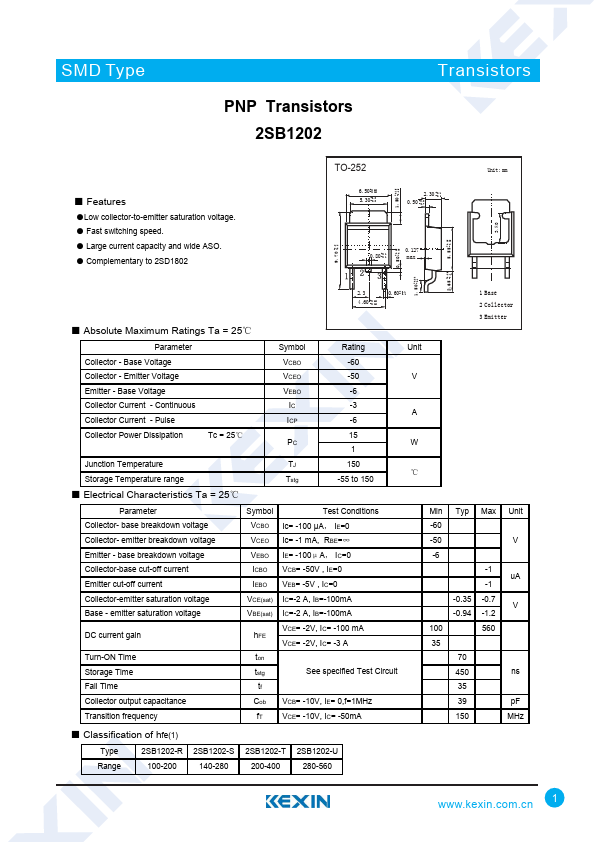

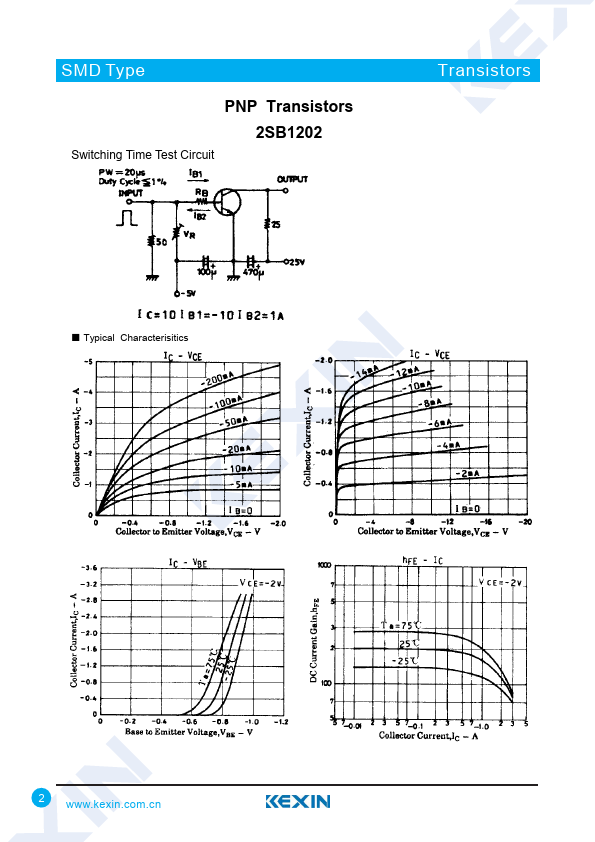

SMD Type Transistors PNP Transistors 2SB1202 ■ Features ●Low collector-to-emitter saturation voltage. ● Fast switching speed. ● Large current capacity and wide ASO. ● Complementary to 2SD1802 + 9.70 0.2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30 +0.1 -0.1 0.50 +0.8 -0.7 + 0.15 1 .5 0 -0.15 0.80+0.1 -0.1 0.127 m ax + 0.15 5 .5 5 -0.15 3.80 Unit: mm +0 2.65 .25 -0.1 +0 0.50 .15 -0.15 +0 1.50 .28 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.
