2SB1599 - PNP Transistors

Key Features

  • s.
  • Low collector to emitter saturation voltage VCE(sat).
  • Complementary to 2SD2457 1.70 0.1 0.42 0.1 0.46 0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Base Current Collector Current - Pulse Collector Power Dissipation Junction Temperature Storage Temperature range Symbol Rating Unit VCBO -50 VCEO -40 V VEBO -5 IB -0.6 A ICP -3 PC 1 W TJ 150 ℃ Tstg -55 to 150 1.Base 2.Collec.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB1599 Silicon PNP epitaxial planer type Transistor Panasonic Semiconductor
2SB1590K Low frequency amplifier Rohm
2SB1590K Silicon PNP transistor BLUE ROCKET ELECTRONICS
2SB1590K SILICON PNP TRANSISTOR LZG
2SB1592 Silicon PNP epitaxial planer type Transistor Panasonic Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SB1590K PNP Transistors
2SB1527 PNP Epitaxial Planar Silicon Transistors
2SB1537 Silicon PNP epitaxial planar type Transistor
2SB1539 Silicon PNP epitaxial planar type Transistor
2SB1561 PNP Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

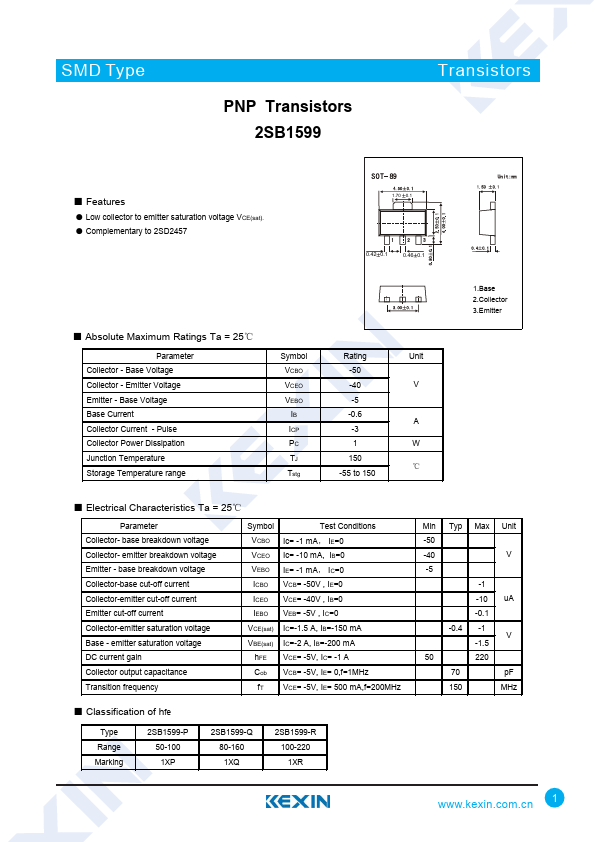

SMD Type PNP Transistors 2SB1599 Transistors ■ Features ● Low collector to emitter saturation voltage VCE(sat). ● Complementary to 2SD2457 1.70 0.1 0.42 0.1 0.46 0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Base Current Collector Current - Pulse Collector Power Dissipation Junction Temperature Storage Temperature range Symbol Rating Unit VCBO -50 VCEO -40 V VEBO -5 IB -0.6 A ICP -3 PC 1 W TJ 150 ℃ Tstg -55 to 150 1.Base 2.Collector 3.
