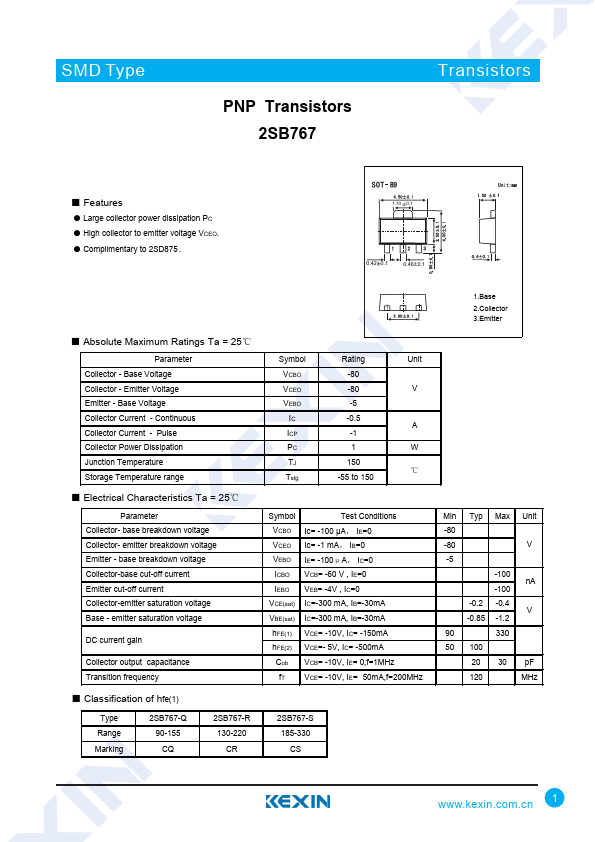

2SB767
2SB767 is PNP Transistors manufactured by Kexin Semiconductor.
Features
- Large collector power dissipation PC
- High collector to emitter voltage VCEO.
- plimentary to 2SD875 .
1.70 0.1
0.42 0.1
0.46 0.1
- Absolute Maximum Ratings Ta = 25℃
Parameter Collector
- Base Voltage Collector
- Emitter Voltage Emitter
- Base Voltage Collector Current
- Continuous Collector Current
- Pulse Collector Power Dissipation Junction Temperature Storage Temperature range
- Electrical Characteristics Ta = 25℃
Parameter Collector- base breakdown voltage Collector- emitter breakdown voltage Emitter
- base breakdown voltage Collector-base cut-off current Emitter cut-off current Collector-emitter saturation voltage Base
- emitter saturation voltage
DC current gain
Collector output capacitance Transition frequency

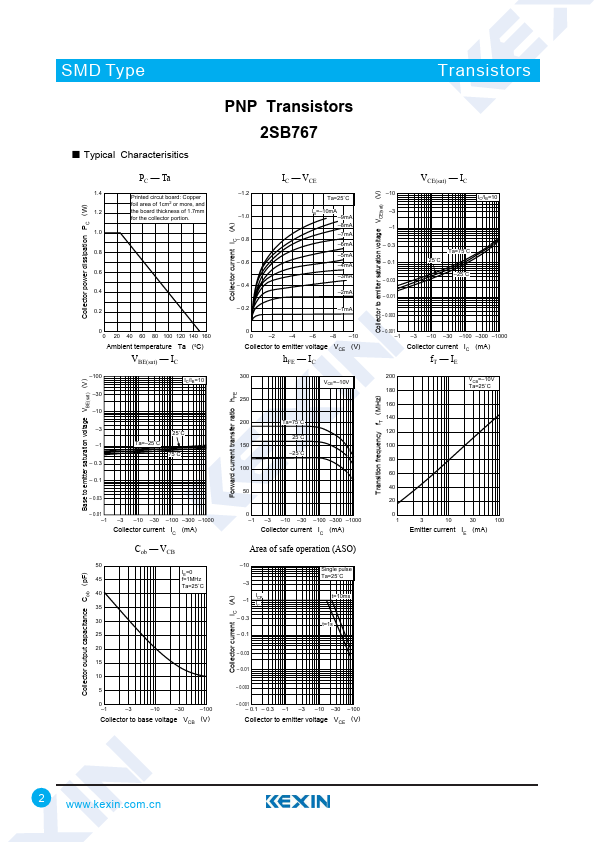

- Classification of hfe(1)
Type Range Marking
2SB767-Q 90-155 CQ
2SB767-R 130-220
Symbol
Rating
Unit
VCBO
-80
VCEO
-80
VEBO
-5
-0.5
-1...
