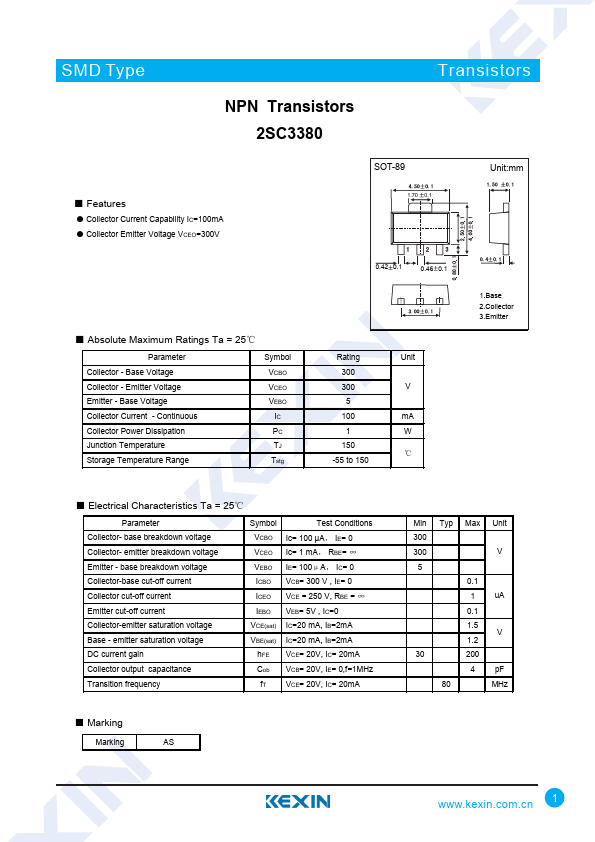

2SC3380 Datasheet NPN Transistors

Manufacturer: Kexin Semiconductor

Overview: SMD Type Transistors NPN Transistors 2SC3380 ■.

Key Features

  • s.
  • Collector Current Capability IC=100mA.
  • Collector Emitter Voltage VCEO=300V SOT-89 1.70 0.1 Unit:mm.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Power Dissipation Junction Temperature Storage Temperature Range Symbol VCBO VCEO VEBO IC PC TJ Tstg 0.42 0.1 0.46 0.1 1.Base 2.Collector 3.Emitter Rating Unit 300 300 V 5 100 mA 1 W 150 ℃ -55 to 150.
