2SC4117 - NPN Transistors

Key Features

  • s.
  • High voltage: VCEO = 120 V.
  • High hFE: hFE = 200~700.
  • Low noise: NF = 1dB (typ. ), 10dB (max).
  • Small package.
  • Complementary to 2SA1587 1 Base 2 Emitter 3 Collector.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Collector - Base Voltage VCBO 120 Collector - Emitter Voltage VCEO 120 V Emitter - Base Voltage VEBO 5 Collector Current - Continuous Base Current IC 100 mA IB 20 Collector Power Dissipation PC 100 mW Junction Temp.

📥 Download Datasheet

Full PDF Text Transcription for 2SC4117 (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for 2SC4117. For precise diagrams, and layout, please refer to the original PDF.

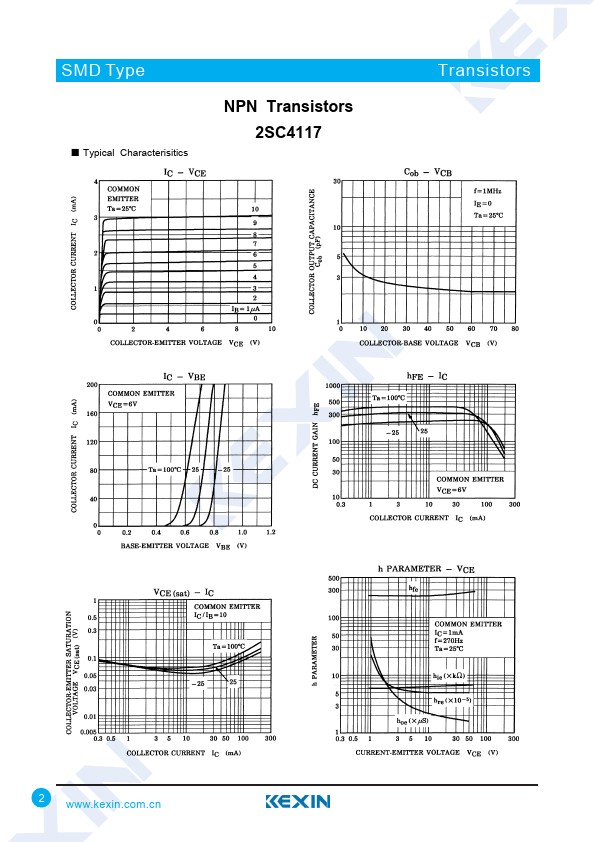

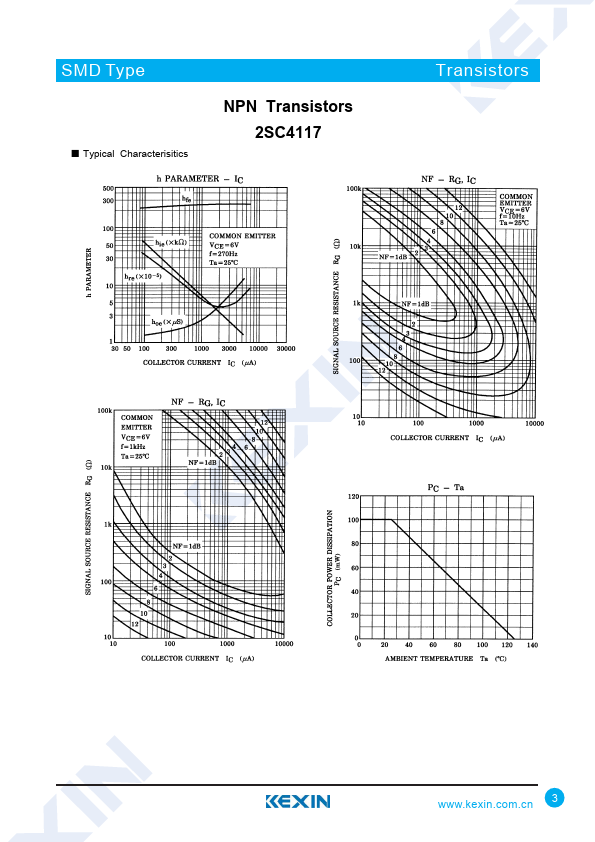

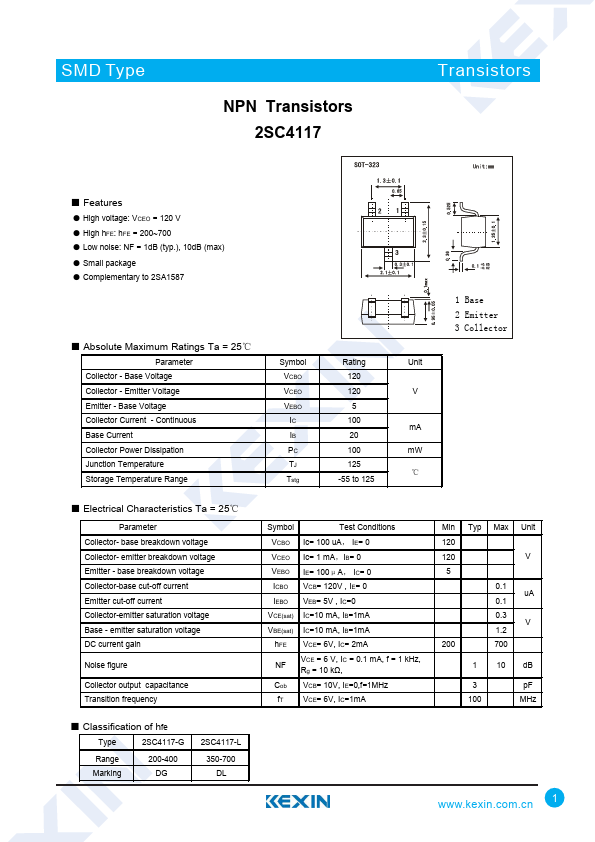

SMD Type NPN Transistors 2SC4117 Transistors ■ Features ● High voltage: VCEO = 120 V ● High hFE: hFE = 200~700 ● Low noise: NF = 1dB (typ....
