Absolute Maximum Ratings Ta = 25℃
Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Base Current Collector Power Dissipation Junction Temperature Storage Temperature Range
Symbol
Rating
Unit
VCBO
35
VCEO
30
V
VEBO
5
IC
500
mA
IB
50
PC
100
mW
TJ
125
℃
Tstg
-55 to 125.
Full PDF Text Transcription for 2SC4118 (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
2SC4118. For precise diagrams, and layout, please refer to the original PDF.

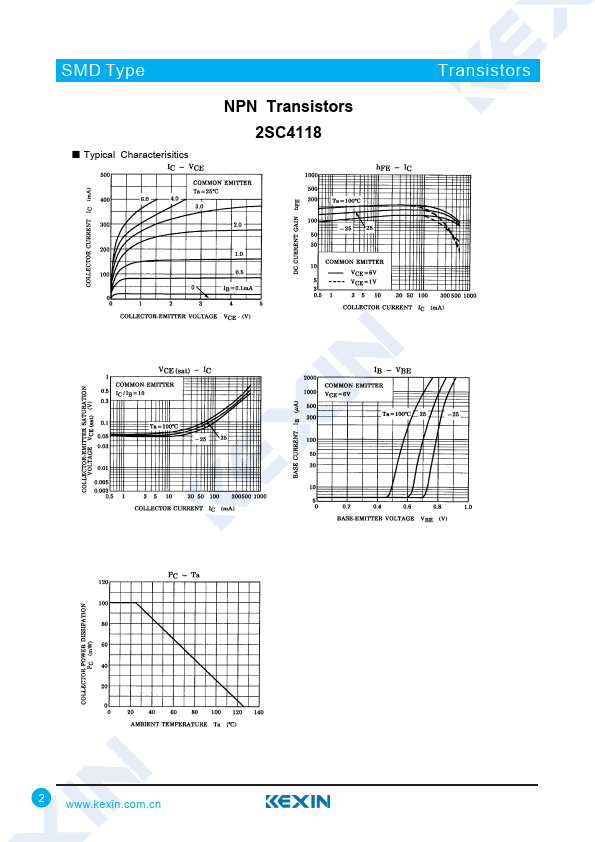

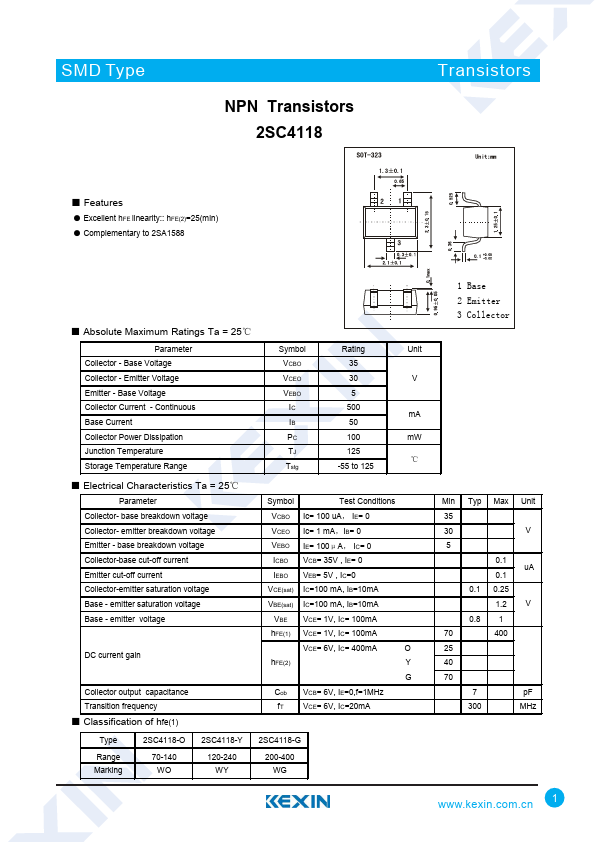

SMD Type NPN Transistors 2SC4118 Transistors ■ Features ● Excellent hFE linearity:: hFE(2)=25(min) ● Complementary to 2SA1588 ■ Absolute Maximum Ratings Ta = 25℃ Paramete...
View more extracted text
Complementary to 2SA1588 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Base Current Collector Power Dissipation Junction Temperature Storage Temperature Range Symbol Rating Unit VCBO 35 VCEO 30 V VEBO 5 IC 500 mA IB 50 PC 100 mW TJ 125 ℃ Tstg -55 to 125 ■ Electrical Characteristics Ta = 25℃ Parameter Collector- base breakdown voltage Collector- emitter breakdown voltage Emitter - base breakdown voltage Collector-base cut-off current Emitter cut-off current Collector-emitter saturation voltage Base - emitter saturatio
2SC4118 Datasheet
